Product Details:
Payment & Shipping Terms:
|
| Design: | API 609 | Installation: | Any Direction |
|---|---|---|---|
| Operation: | Manual | Face To Face: | API 609 Catagory A |
| Feature: | Exchangeable Seat | Test: | API 598 |
| Seat: | EPDM, NBR | ||
| High Light: | Epdm Seat API609 Butterfly Valve,Low Pressure API 609 Butterfly Valve,DIN3230 wafer butterfly valve |
||

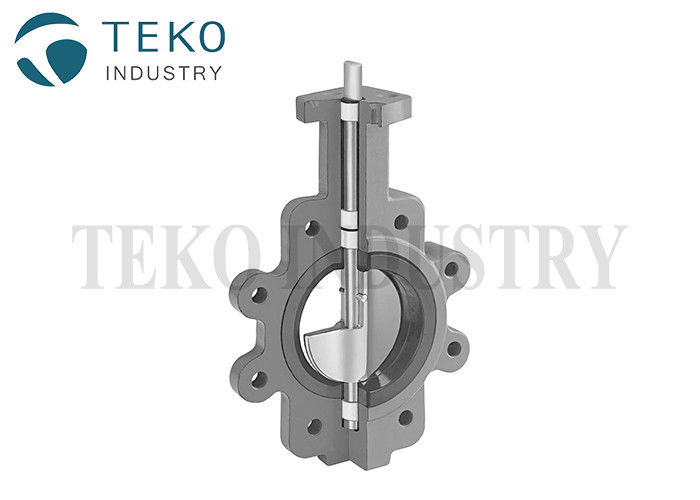

WAFER END DUCTILE IRON EPDM SEAT API 609 BUTTERFLY VALVE LOW PRESSURE
Rating
DN32mm (1 ¼”)- 1600mm (64”)
PN 10, 16, 25, 150#, 300#
Materials
Body: Ductile iron, WCB, Stainless steel, Duplex, Superduplex,….
Disc: Ductile iron, WCB, Stainless steel, Bronze-aluminium, Duplex, Monel, Uranus, Hastelloy,…
Shaft: AISI 316, 304, 420, Monel, Duplex, Superduplex, …
Seat: EPDM, NBR, Hypalon, Viton, Polisopreno, Silicone, Epiclorhidrine,….
Design Standard
| Face to face |
EN558 ISO5752 API 609 BS 5155 |
| Tolerances | ISO 2768-m |
| Press rating |
EN 12255-1, DIN 3230, BS6755, ISO5208 Body: 1.5*PN Sealing: 1.1*PN |
| Flange Connection |
PN10/16- ANSI 150Lb ISO 7005, DIN 2501, |
| Top Connection | ISO 5211 |
| Sealing Test | API 598 |
Concentric design
One-piece body with four centering lugs which allows installation between flanges at intermediate points in the pipeline.
Water: irrigation, potable water, sea water, water supply, pumping station, industrial water, waste water, fire protection systems, cooling tower
Industry: food, paper mills, chemical, petrochemical, sugar mills, cement industry, petroleum, steel industry,…
Power generation
Shipbuilding and offshore
Mining
Heating
Air conditioning
Compressed air
Construction
