Top Entry Double Seated Industrial WCB Ball Valve Cone Shape With No Clogging

China Top Entry Double Seated Industrial WCB Ball Valve Cone Shape With No Clogging supplier

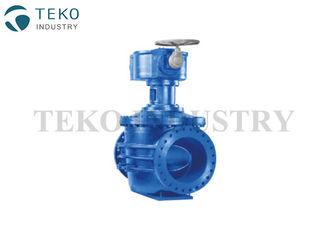

Large Image :  Top Entry Double Seated Industrial WCB Ball Valve Cone Shape With No Clogging

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: ZQ47Y

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 25 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 350 tons per year
Contact Now
Detailed Product Description
Feature: Double Seated Size: 6"~36"
Trim Number: Hard Face Material: Ductile Iron, WCB
Pressure Rating: 150Lb~1500Lb Port: Full Bore

Top Entry Double Seated Cone Shape Ball Industrial Valves With No Clogging



Design Features

  1. Flow pressure push the seat ring against the plug to achieve sealing
  2. 100% full bore design, minimum pressure drop.
  3. Self-cleaning flushing by the fluid itself during opening and closing
  4. Wide applications: For sewage treatment plant, Municipal water supply, Hydraulic power plant, City water tank etc.



Design Benefits

  1. Double metal seat design, double block uses
  2. No contact when valve open or closed, long lifespan up to 10 years
  3. Can used as regulating valve for flow/pressure adjusting and used in sewage, water pump outlets.
  4. Rigid structure is suitable for heavy duty impact resistance.
  5. Full bore design, no obstacles on the flow passage.
  6. No cavitation happens for either high speed nor low speed fluid.
  7. Self-flushing design make it no clogging eve for solid contained fluid. Maintenance free design.
  8. Trunnion mounted shaft design provides smooth and reliable operation.
  9. Can used to replace high costly hemispherical ball valve.
  10. Top entry design, can be maintenance on-site, no need to disassemble from pipeline.

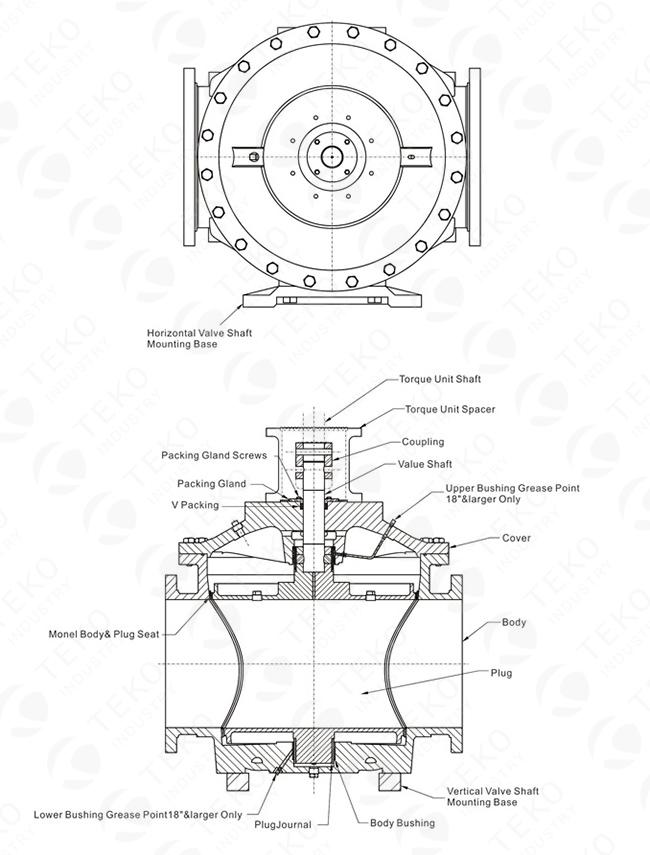

Main material



Body Ductile Iron
Plug Ductile Iron
Stem Sainless Steel
Seat Monel Seat
Body seat Monel Seat
