|Body Material:||Ductile Iron||End Connection:||Flange End|
|Seat Material:||SS304 Or Bronze||Operation:||Oil Dashpot|
industrial butterfly valves,
industrial check valve

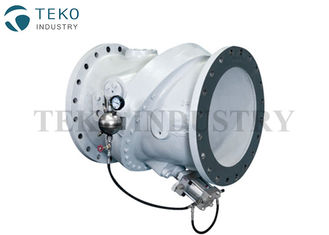

Minimum Pressure Loss Tilted Disc Check Industrial Valve With Oil Dashpot
The tilted disc check valve provides energy efficient operation, while easily handling the most sever and demanding applications with advantage of non-slam closure, wear resistance, leak tight seating and versatility of operation.
Disc design: contured disc provides minimum headloss and energy savings.
Disc travel: 40°disc stroke results in quick closure
Body: Ultra low headloss is the result of streamlined body contouring and 140% of flow area through the seat.
Disc & body seat rings: Leak tight seating is achieved at all working pressures by utilizing a lift and tilt action which provides excellent sealing and low wear characteristics.
Pivot pins and bushings: maximum strength is achieved by utilizing large diameter pins constructed of high tensile materials and low wear characteristics.
|Dashpots||Top & bottom available.|
|Surface treatment||Fusion Boded Epoxy standard|
|Material||Ductile Iron Or Cast steel|
