Piston Lift Industrial Check Valve ASME B16.34 API6D For Pulsating Flow Service

China Piston Lift Industrial Check Valve ASME B16.34 API6D For Pulsating Flow Service supplier

Large Image :  Piston Lift Industrial Check Valve ASME B16.34 API6D For Pulsating Flow Service

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE, API
Model Number: H41Y

Payment & Shipping Terms:

Minimum Order Quantity: 1 pieces
Price: By negotiation
Packaging Details: Pollywooden cases
Delivery Time: 15 days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per year
Contact Now
Detailed Product Description
Test Standard: API 598 Design: API 6D
Trim Number: As Per API 600 Hinge Pin Material: 13%chrome As Standard
Application: Low Flow Or Pulsating Flow Face To Face: ASME B 16.34

ASME B16.34 API6D Piston Lift Check Valve For Pulsating Flow Service





TEKO Piston(lift) check valve provide an good solutions for services where low or pulsating flow are expected. The spring loaded piston disc design is inherently rugged, no hinge pin, bushing or bolted connections which are subject to impact loads when valves seats. Manufacture standard:API 6D and AISI B16.34.





Design Features



  • High shutoff cycling, low wearing
  • Quick closing and little water hammer
  • For low or pulsating flow service
  • Trim: as customer design




Application Standard:

  • API 602,ASME B16.34,BS 5352
  • Testing according to API 598
  • Marking to MSS SP25
  • Socket Welded Ends to ASME B16.11
  • Screwed Ends to ASME B1.20.1
  • Butt Welded Ends to ASME B16.25
  • Flanged Ends to ASME B16.5



Specifications



Size 2" thru 12"
Class rating 150,300,600,900,1500Lb
Operating Temperature -46℃ to +176℃
End Connection Flange, Weld End





Piston Lift Industrial Check Valve ASME B16.34 API6D For Pulsating Flow Service

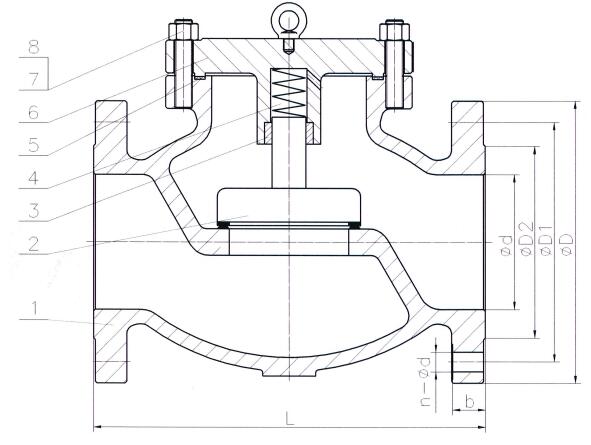

Item Description Material
1 Body CF8M
2 Disc F316
3 Busing F316
4 Spring SS316
5 Gasket SS316+graphite
6 Cover CF8M
7 Cover Bolt A193 B8
8 Cover Nut A194 8
