DN50 JIS Marine Valve F 7366 Carbon Steel Stainless Steel Trim Sea Water Gate Fuel Valve For Ship Equipment

China DN50 JIS Marine Valve F 7366 Carbon Steel Stainless Steel Trim Sea Water Gate Fuel Valve For Ship Equipment supplier

Large Image :  DN50 JIS Marine Valve F 7366 Carbon Steel Stainless Steel Trim Sea Water Gate Fuel Valve For Ship Equipment

Product Details:

Place of Origin: Made In China
Brand Name: TEKO
Certification: ABS
Model Number: JIS F7366

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: By wooden cases
Delivery Time: 15 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 tons per month
Contact Now
Detailed Product Description
Material: Carbon Steel Standard No.: JIS F7366
Pressure: JIS 10K Size: DN50-DN400
Trim: BC6, Stainless Steel Application: Seawater, Fuel Oil
High Light:

marine globe valve

,

marine check valve

JIS F 7366 Carbon Steel Stainless Steel Trim Sea Water Gate Fuel Valve For Ship Equipment



Model F7366
Diameter DN 50 - DN 400
Pressure 10 K
Medium Water,Oil,Steam
Body Material Cast Steel



Main Materials:
1 - Body - Cast Steel - SC49
2 - Seat - Stainless Steel - SUS410
3 - Disc - Stainless Steel - SUS410
4 - Stem - Stainless Steel – SUS410



Applicable Scope

Fuel Oil Piping, Lubricating Oil Piping, Water Piping and steam piping at temperatures 300℃ or less.

Drawing of Marine Cast Steel Gate Valve:





MODEL No. Face to face Flange diam. Flange Pitch Flange Hole Weight
  L(mm) D(mm) C(mm) n*d(mm) W(kgs)
F7366 10K50 200 155 120 4×Ф19 17.1
F7366 10K65 220 175 140 4×Ф19 26.5
F7366 10K80 230 185 150 8×Ф19 31.5
F7366 10K100 250 210 175 8×Ф19 44.9
F7366 10K125 270 250 210 8×Ф23 63.2
F7366 10K150 290 280 240 8×Ф23 82.3
F7366 10K200 310 330 290 12×Ф23 130
F7366 10K250 340 400 355 12×Ф25 203
F7366 10K300 380 445 400 16×Ф25 291
F7366 10K350 420 490 445 16×Ф25 368
F7366 10K400 480 560 510 16×Ф27 507

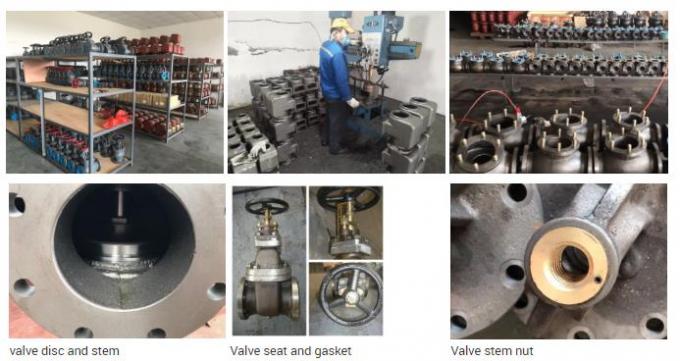

DN50 JIS Marine Valve F 7366 Carbon Steel Stainless Steel Trim Sea Water Gate Fuel Valve For Ship Equipment 0

DN50 JIS Marine Valve F 7366 Carbon Steel Stainless Steel Trim Sea Water Gate Fuel Valve For Ship Equipment 1
