F7353 JIS Marine Valve Cast Iron Screw Down Non - Return Straight Type With CCS Certificate

China F7353 JIS Marine Valve Cast Iron Screw Down Non - Return Straight Type With CCS Certificate supplier

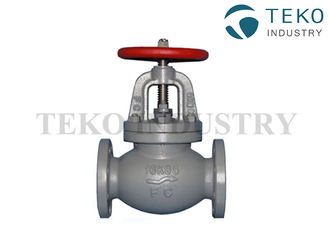

Large Image :  F7353 JIS Marine Valve Cast Iron Screw Down Non - Return Straight Type With CCS Certificate

Product Details:

Place of Origin: Made In China
Brand Name: TEKO
Certification: CCS
Model Number: JIS F7353

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: By wooden cases
Delivery Time: 15 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 tons per month
Contact Now
Detailed Product Description
Material: Cast Iron Standard No.: JIS F7319
Pressure Rating: JIS 10K Type: SDNR
End Connection: Flange Application: Water, Oil, Gas

JIS F7353 Cast Iron Screw Down Non-Return Straight Type With CCS Certificate



Product Overview:



Model F7353
Diameter DN 50 - DN 450
Pressure 5 K
Medium Water,Oil,Steam
Body Material Cast Iron



Structural characteristics:



1. Well-selected materials, meet with domestic and foreign standards, reasonable structure, beautiful shape.



2. Stem has a good anti-corrosion and scratch resistance after quenching and surface nitriding treatment.



3.Can be used with a variety of flange pipe standard and sealing surface pattern to meet the various engineering needs and users' requirements.



4.Full range of body materials, packing and gasket can matched based on the actual working conditions and users' reasonable request ,applied to all kinds of pressure, temperature and medium conditions.



Test Pressure



Nominal Pressure

Body

Mpa(kg/cm2)

Seat

Mpa(kg/cm2)

DN300 and below 1.05(10.5) 0.77(7.7)
DN350 and above 0.9 (9.0) 0.66(6.6)

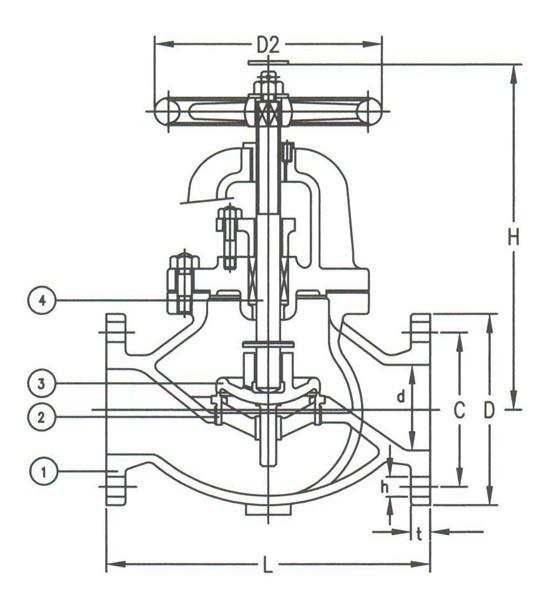

Drawing & Dimensions



F7353 JIS Marine Valve Cast Iron Screw Down Non - Return Straight Type With CCS Certificate



Item NO. Size L (mm) D (mm) C (mm) Number of Holes h
F7353-050 50 210 130 105 4 15
F7353-065 65 250 155 130 4 15
F7353-080 80 280 180 145 4 19
F7353-100 100 340 200 165 8 19
F7353-125 125 410 235 200 8 19
F7353-150 150 480 265 230 8 19
F7353-200 200 570 320 280 8 23
F7353-250 250 740 385 345 12 23
F7353-300 300 840 430 390 12 23
F7353-350 350 940 480 435 12 25
F7353-400 400 1050 540 495 16 25
