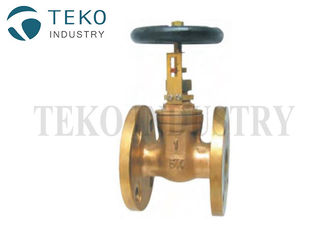

Class 150 10K Non - Rising Stem Bronze JIS Marine Gate Valve

Class 150 10K Non - Rising Stem Bronze JIS Marine Gate Valve
Class 150 10K Non - Rising Stem Bronze JIS Marine Gate Valve

Large Image :  Class 150 10K Non - Rising Stem Bronze JIS Marine Gate Valve

Product Details:
Place of Origin: Made In China
Brand Name: TEKO
Certification: CCS
Model Number: JIS F7400
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: By wooden cases
Delivery Time: 15 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 tons per month
Contact Now
Detailed Product Description
Material: Cast Bronze Feature: Open/close Indicators
Pressure: JIS 5K Type: Gate
Bonnet: Non-rising Stem Trim: Brass
High Light:

10K Marine Gate Valve

,

JIS Marine Gate Valve

,

Class 150 JIS Marine Valve

Class 150 10K Non-rising Stem Bronze Material JIS Marine Gate Valve





Class 150 Marine Bronze Gate Valves 5Kg/cm²

General Specification
Type Class 150 Marine Bronze Gate Valves 5 Kg/cm²
HS Code 8481804090
Working Pressure 5 Kgf / cm²
Size DN 15 ~ DN 100
Packing Details
Packing Carton / As your requirement
Please do not hesitate to contact us for any other information.



Class 150 10K Non - Rising Stem Bronze JIS Marine Gate Valve 0

Test Standard: JIS F7400-1996

Test Pressure: Body-2.1Mpa, Seat-1.54Mpa

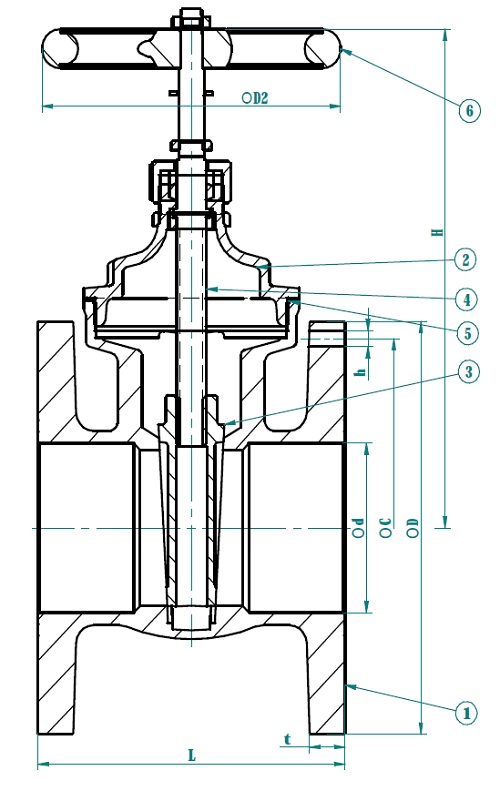

Main Material:

1-Body: Bronze (BC6)

2-Bonnet: Bronze (BC6)

3-Disc:Bronze(BC6)

4-Stem: Brass (C3771BD)

5-Gasket: NBR or non-asbestos

6-Handwheel: Cast Iron (FC200)



Main Size List(mm):

DN d L D C No of Bolt h t H D2
15 20 80 95 70 4 12 9 109 80
20 25 80 100 75 4 15 9 110 80
25 25 80 125 90 4 19 9 110 80
32 39 100 135 100 4 19 11 142 100
40 39 100 140 105 4 19 11 142 100
50 50 115 155 120 4 19 12 167 125
65 62 127 175 140 4 19 13 195 125
80 74 142 185 155 8 19 15 218 140
100 100 165 210 175 8 19 15 271 180
