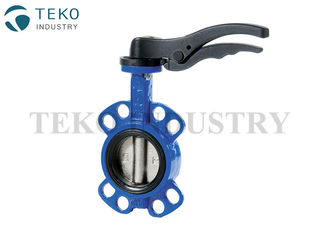

Centerline API609 Butterfly Valve Easy Installation CF8M Disc SS Shaft With Soft Seat

China Centerline API609 Butterfly Valve Easy Installation CF8M Disc SS Shaft With Soft Seat supplier

Large Image :  Centerline API609 Butterfly Valve Easy Installation CF8M Disc SS Shaft With Soft Seat

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE, API
Model Number: D71X

Payment & Shipping Terms:

Minimum Order Quantity: 1 pieces
Price: By negotiation
Packaging Details: Pollywooden cases
Delivery Time: 15 days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per year
Contact Now
Detailed Product Description
Body Material: ASTM A536 Ductil Iron Body Configuration: Wafer, Lug, Double Flange
Flange Standard: ASME B16.5 150Lb, DIN PN10 Face To Face: ASME B16.10
Seat Materail: EPDM,NBR, PTFE, Etc Warranty: 1 Year

Centerlined CF8M Disc SS Shaft API609 Butterfly Valve With Soft Seat





Introduction



We offer a full range of Wafer type Butterfly valve up to DN1400, in a range of materials such as Cast Iron, Ductile Iron and carbon steel, alongside CF8 Stainless AND CF8M Austenitic with Aluminum Bronze and C95500 Nickel Aluminum Bronze variants in Wafer/Lugged type and double flanged variants.



Wafer Type Butterfly Valve - Through Shaft Double Half Shaft Polished Edge Disc_500x500



Discs are included in the range in similar materials including a nylon coated version. Stainless Steel shafts and WRAS approved seat materials such as EPDM, NBR, Teflon and Viton are available.



All our Butterfly Valve products are available with Hand wheel, gearbox or actuation to your specification offered in size ranges from DN50 to DN600 for wafer type and up to DN1400 on the double flanged versions.





Specifications



· Working pressure : 1.0 / 1.6Mpa

· Working temperature : NBR 0 °c to 80 °c ; EPDM -10 °c to +120 °c

· Face to face : DIN3202 K1

· The flange can be as per : DIN2501 PN10/16; BS4504 PN10/16; BS10 TABLE D/E ; JIS2220 10K/16K ; ANSI 125/150 .

· Testing: API598

· Medium: Fresh water ; Seawater ; food stuff ; all kinds of oil etc.





Material List

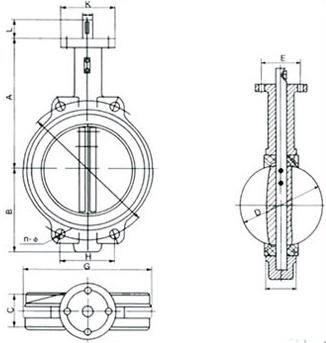

Centerline API609 Butterfly Valve Easy Installation CF8M Disc SS Shaft With Soft Seat



NO. Part Material
1 Circlip 65MN
2 Lock Piece Steel
3 Sleeve PTFE
4 O-ring NBR
5 Shaft SS304
6 Body Cast Iron GG25 or Ductile Iron GGG40
7 Seat ring NBR or EPDM
8 Disc GGG40; SS304 or SS316
9 Shaft SS304
10 Screw Steel
