|End Standard:||ANSI 125/150Lb||Feature:||Bi-drection Seal|
|Service:||WOG, Etc||Body Style:||Lug, Wafer, U Section Etc|
|Design:||API 609||Size:||DN2" Thru 48"|
Pinless Concentric Stainless Steel Butterfly Valve,
Backed Seat Stainless Steel Butterfly Valve,
150Lb Stainless Steel Butterfly Valve
Pinless Concentric MULTITOP Stainless Steel Butterfly Valve With Backed Seat
TKEO Resilient Seated Butterfly Valve, is also referred to as “concentric”,"rubber lined" and “rubber seated” butterfly valve, has a rubber (or resilient) seat between the external diameter of the disc and the internal wall of the valve.
Butterfly valve is a quarter-turn valve that rotates 90 degrees to open or close the media flow. It has a circular disc, also known as the butterfly, found at the center of the body that functions as the closing mechanism of the valve. The disc is connected to an actuator or handle through the shaft, which goes through from the disc to the top of the valve body.
The movement of the disc will determine the position of the butterfly valve. The resilient seated butterfly valve lug type can work as isolating valve if the disc rotates a full 90-degree turn, the valve is completely opened or closed.
Butterfly valve is also used as flow regulating valve, if the disc does not rotate to a full quarter-turn, it means the valve is partially open, we can regulate the flow of fluids by various open angle.
|Design & Manufacturer||API609/EN593|
|Face to face||ISO5752/EN558-1 series 20|
|Flange end||ISO1092 PN6/PN10/PN16/PN25,ANSI B16.1/ANSI B 16.5 125/150|
|Pressure rating||PN6/PN6/PN16/PN25,ANSI Class125/150|
|Test and Inspection||API598/EN12266/ISO5208|
|Actuator mounting pad||ISO5211|

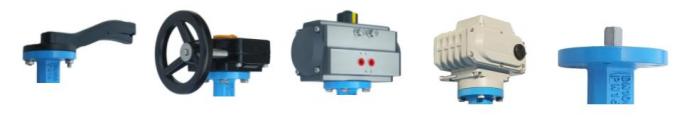

We offer different actuations for customer’s request
