|Manufacture:||API 609||Stem Materail:||SS410, F304|
|Face To Face:||API 609 Catagory A||End:||Lug Style|

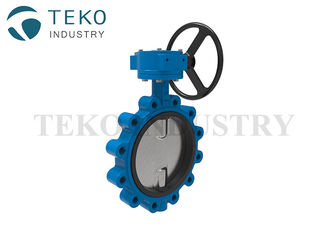

API609 Wafer End One Piece Body Resilient Seat Manual Butterfly Valve With Actuator
Wafer butterfly valve with epoxy-coated ductile iron body are designed to control various media in a commercial and industrial application. Valve mounts between two standard ANSI/ASME Class 125/150 flanges. Seat to flange sea, eliminates the need for flange gaskets. Disc is precision machined 316SS for maximum corrosion resistance. Two piece stem and disc design enhance the flow capacity and reduces turbulence.
ISO5211 top mounting for manual, air or electric actuators.
Unique wave line seat reduces torque and extends seal life.
Ductile iron body with 3-layer epoxy coating
316SS disc with 2-piece stem design enhances flow capacity
EPDM, NBR(Buna-N), or FPM(Viton) seal options
Seat Vulcanized to valve body
V-ring stem/shaft seals, same material as seat.
PTFE graphite reinforced stem bearings.
Pressure rated 230 PSI(16 bars)
Easily mounts between ANSI/ASME Class 125/150 flanges
Optional 10 positional locking hand lever.
Wafer resilient butterfly valves are used to control the flow of water, oils, air, vacuum and other media compatible with the materials of construction. Valves can be operated with manual air or electric actuators.
Three seal options are available:
EPDM: water service, other compatible media.
NBR: oils, air, vacuum, other compatible media.
FPM: Hydrocarbons, oils, other compatible chemicals/media.
EPDM: -18 to 120℃
NBR: -15 to 85 ℃
FPM seals: -15 to 170℃
Hand lever with 10 position locking
