Bi - Drection Rubber Seated Butterfly Valve Seal Semi Lug Style With Lock Handle

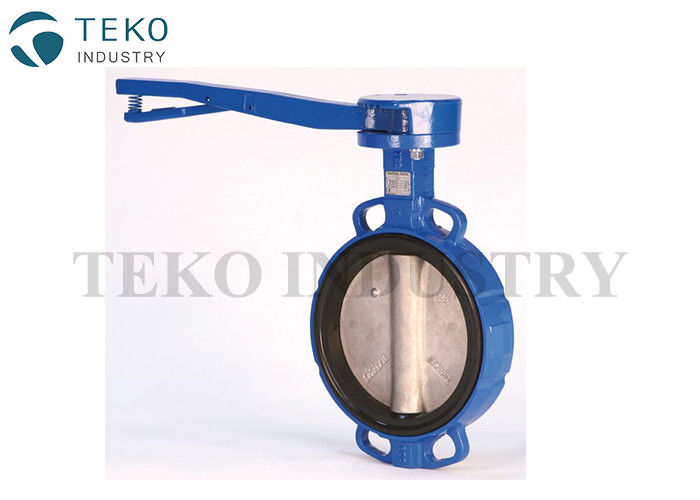

Large Image : Bi - Drection Rubber Seated Butterfly Valve Seal Semi Lug Style With Lock Handle

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE, API
Model Number:	D71X,D371X

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	By negotiation
Packaging Details:	Pollywooden cases
Delivery Time:	10 days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Body Material:	Cast Iron, Ductile Iron	Feature:	Bi-drection Seal
Installation:	Any Direction	Body Style:	Semi Lug
Face To Face:	API 609	Size:	DN2" Thru 48"
High Light:	rubber seated butterfly valve , centerline butterfly valves

Semi Lug Centerline Rubber Seated API6098 Butterfly Valve With Lock Handle

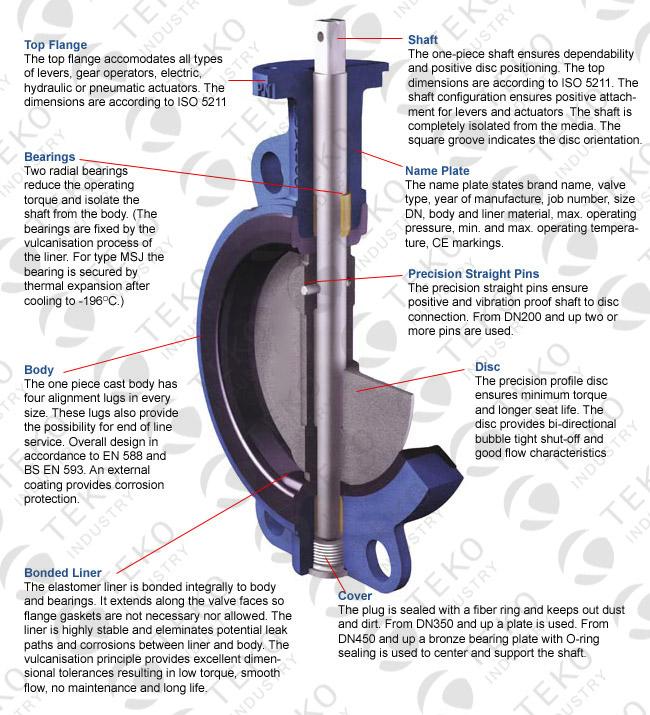

Features and benefits

Phenolic backed seat- Less field installation problems.
Extended neck for insulation- No fabricated extensions required
Machined flats attach disc/stem- one taper pins, eliminating the leakage point
Silicone free from factory- no aftermarket cleaning required
Process quality TFE seats and TFE coated disc available.
Sizes up to 48”- with wide applications
Compatible with ANSI 125/1150 Flanges

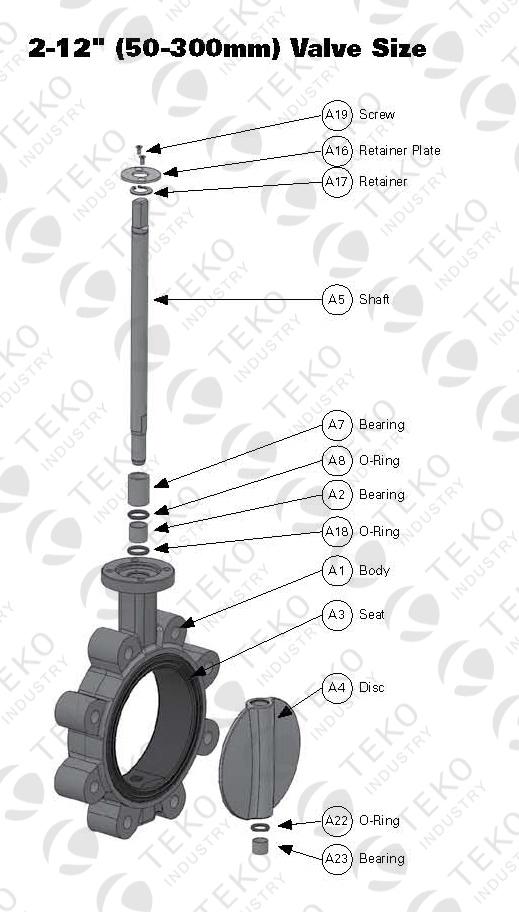

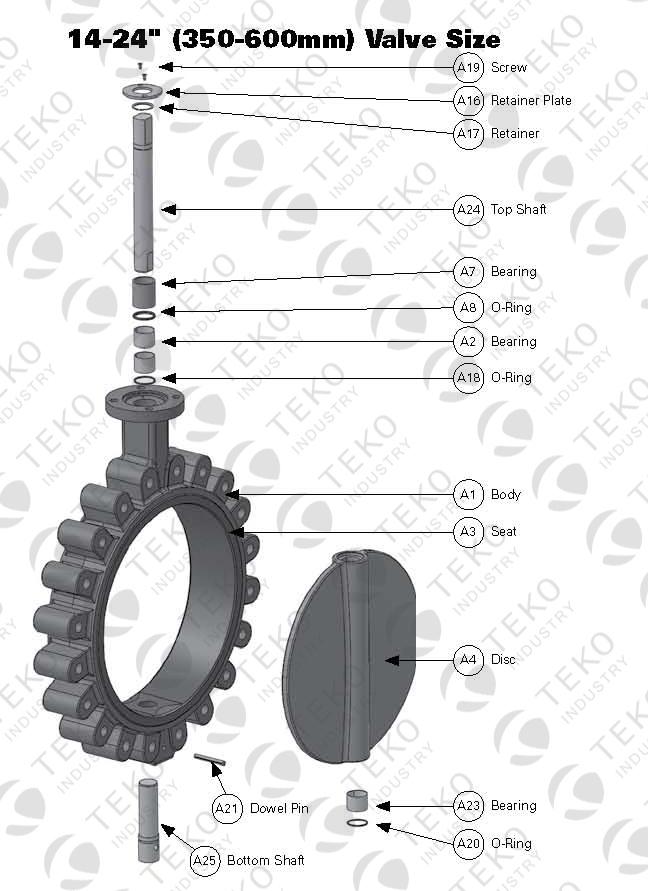

Material of Cosntruction

Bi - Drection Rubber Seated Butterfly Valve Seal Semi Lug Style With Lock Handle 0

Bi - Drection Rubber Seated Butterfly Valve Seal Semi Lug Style With Lock Handle 1

Item	Description	Material
A1	Body	Ductile Iron, ASTM A536, 65-45-12
A2	Bearing	Carbon steel with PTFE sintered bronze composite
A3	Seat	NBR - Acrylonitrile-Butadiene
A3	Seat	EPDM-Terpolymer of Ethylene Propylene and a Diene
A4	Disc	Ductile Iron, ASTM A536, 65-45-12, Nylon 11 coated
		Stainless Steel, ASTM A351, CF8M
		Aluminum Bronze, ASTM B148, C954
A5	Shaft (2- 12")	420 Stainless Steel, ASTM A582
A7	Bearing (2-18")	Glass Filled Nylon
A7	Bearing (20" & 24")	Brass
A8	O-Ring**	NBR - Acrylonitrile-Butadiene
A8	O-Ring**	EPDM - Terpolymer of Ethylene Propylene and a Diene
A16	Retainer Plate	Carbon steel, Zinc Plated
A17	Retainer	Spring Steel
A18	O-Ring	NBR - Acrylonitrile-Butadiene
A18	O-Ring	EPDM - Terpolymer of Ethylene Propylene and a Diene
A19	Screw	Carbon steel, Zinc Plated
A20	O-Ring (14-24")**	NBR - Acrylonitrile-Butadiene
A20	O-Ring (14-24")**	EPDM - Terpolymer of Ethylene Propylene and a Diene
A21	Pin (14-24")	Spring Steel
A22	O-Ring (2"-14")	NBR - Acrylonitrile-Butadiene
A22	O-Ring (2"-14")	EPDM - Terpolymer of Ethylene Propylene and a Diene
A23	Bearing (2-14")	Carbon steel with PTFE sintered bronze composite
A24	Shaft - Top (14-24")	420 Stainless Steel, ASTM A582
A25	Shaft - Bottom (14-24")	420 Stainless Steel, ASTM A582

Bi - Drection Rubber Seated Butterfly Valve Seal Semi Lug Style With Lock Handle 2
