Product Details:
Payment & Shipping Terms:
|
Body Material: | CF8, CF8M | Stem Materail: | SS410, F304 Or F316 |
---|---|---|---|
Installation: | Any Direction | End Connection: | Double Flange, Wafer, Lug |
Face To Face: | API 609 | Applications: | Water, Oil, Air Etc. |
High Light: | rubber seated butterfly valve,centerline butterfly valves |

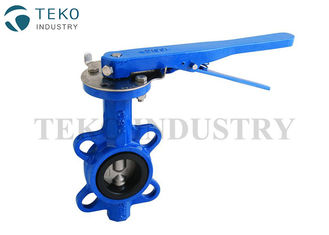

NBR Liner Stainless Steel Body Concentric API609 Butterfly Valve With Long Cycle
Description:
TEKO cast iron butterfly valves offered in Wafer style. These valves are available with Ductile Iron, Aluminum-Bronze or 316 Grade Stainless steel discs. These valves are in stock with both BUNA-N and EPDM liners. Viton liners are available upon request. The new design incorporates a one-piece stem with an important new feature. The disc is broached to fit the milled square stem with allows the disc to float, giving substantially improve torque valves. It is also available with lever operators and worm gear operators and feature bubble tight shut-off. The lug configuration is suitable for dead-end service. All Butterfly Valves can be modified with extensions and various actuators.
Features
* Stainless Steel Disc, Lever Handle, Gray Body, EPDM Seat
* 200WOG
* PTFE Graphite Stem Bushing for positive stem alignment
* Stem includes a snap ring to prevent inadvertent stem removal
* Unique Stem to Disc design
* Epoxy coated
* Torque Values up to 33% less than other valve designs
* Precision disc machining provides bubble-tight shutoff
* Top and bottom alignment holes
* Ten Position lock lever handles are ideal for on-off and throttling applications
Applications
Agricultural irrigation | Water distribution | Waste water treatment |
Pulp & pater | Chemical | Oil & gas |

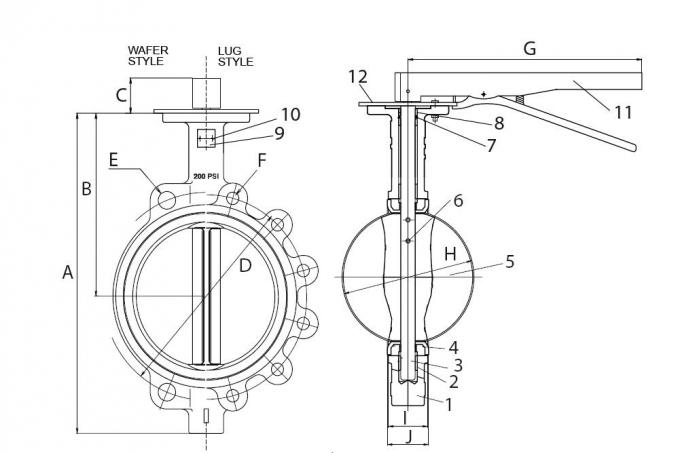

Key Parts
PART | DESCRIPTION | STANDARD MATERIAL |
1 | Body | Cast Iron,Ductile Iron, Carbon Steel, Stainless Steel |
2 | Bushing | PTFE |
3 | Stem | Stainless Steel 416,316,304 |
4 | Liner | Buna-N, EPDM |
5 | Disc | Aluminum Bronze, Ductile Iron Nickel Plated |
6 | Taper Pin | SS316 |
7 | O-ring | Buna-N, EPDM |
8 | Bushing | PTFE |
9 | Plate Rivet | Aluminum |
10 | Name Plate | Aluminum |
11 | Handle | Malleable iron |
12 | Throttle plate | Plated steel |
