Piston Type Silent Operation JIS Check Valve Hardface Seat With Water Hammer Prevention

Piston Type Silent Operation JIS Check Valve Hardface Seat With Water Hammer Prevention
Piston Type Silent Operation JIS Check Valve Hardface Seat With Water Hammer Prevention

Large Image :  Piston Type Silent Operation JIS Check Valve Hardface Seat With Water Hammer Prevention

Product Details:
Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: J42H
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 25 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 350 tons per year
Detailed Product Description
Structure: Silent Check Seat Material: Hardface
End Connection: Flange Face To Face: JIS B2002
Design: JIS B2074/2084 Flange End: JIS B2212/2214
High Light:

jis ball valve

,

jis swing check valve

Piston Type Silent Check Valve JIS Check Valve With Water Hammer Prevention



Descriptions



With special design, our TEKO JIS Silent Check Valve is used to prevent water hammer in multi-story buildings and used in vertical turbine pump installations when pumping from a well to an elevated reservoir. Silent Check Valves are recommended for commercial and industrial HVAC applications such as heating systems and condensate return lines. The valve closes silently, is low in cost, reliable and requires no regular maintenance. When the pump stops, the spring forces disc closed against slight pump head at zero velocity which results in silent closure.





Applicable Standard



Design and Manufacture Face to face Flange Dimensions Pressure Temperature Rating Inspection and test
JIS B2074 2084 JIS B2002 JIS B2212 B2214 JIS B2073 B2083 JIS B2003





Material List

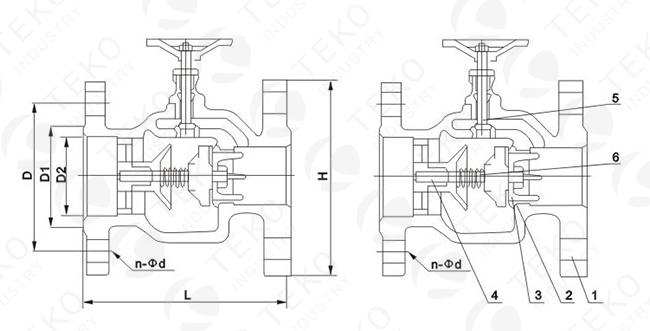

Piston Type Silent Operation JIS Check Valve Hardface Seat With Water Hammer Prevention 0



NO. Part Name Material
1 Body WCB SCS13 SCS14
2 Seat PTFE PTFE PTFE
3 Disc WCB+13Cr SCS13 SCS14
4 Stem WCB 304SS 316SS
5 Seat 25+13Cr SCS13 SCS14
6 Spring 304SS 304SS 316SS

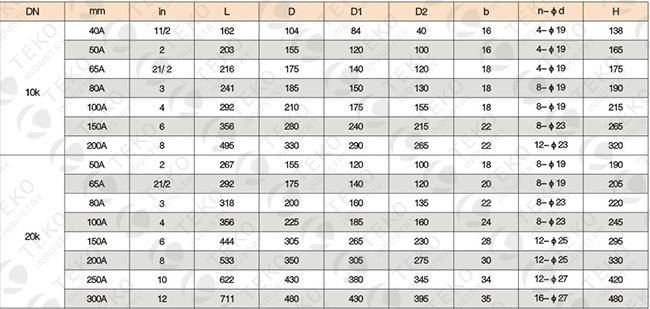

Dimensions



Piston Type Silent Operation JIS Check Valve Hardface Seat With Water Hammer Prevention 1
