Flexible Wedge Gate Valve JIS 10K 20K Rating Flanged End 20 Inches For Fuel Oil

China Flexible Wedge Gate Valve JIS 10K 20K Rating Flanged End 20 Inches For Fuel Oil supplier

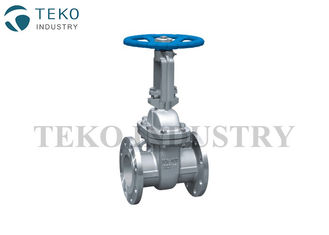

Large Image :  Flexible Wedge Gate Valve JIS 10K 20K Rating Flanged End 20 Inches For Fuel Oil

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: Z41H-10K

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 25 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 350 tons per year
Contact Now
Detailed Product Description
Structure: Flexible Wedge Application: Water, Gas, Oil
Port Size: DN15-DN500 Seat Material: PTFE
Body Material: WCB, SCS13, SCS 14 Installation: Any Directions

JIS 10K 20K Rating Flanged End Flexible Wedge JIS Gate Valve For Fuel Oil



Flexible wedge construction resists wedge sticking or binding in services where the valve may be closed when hot and opened when cold. Seating surfaces are hardfaced to provide high cycle capability in very high differential pressure services.



Technical Data:



1) Size rating: 1-1/2”~20”
2) Working Pressure:10K, 20K
3) Design Standard:JIS B2073
4) Flange Drilling:JIS B2212
5) Test Standard:JIS B 2003

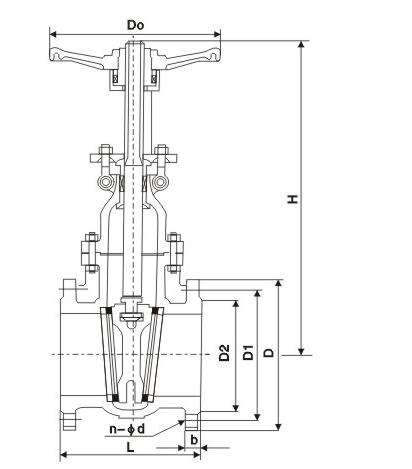

Dimensions for JIS Wedge Gate Valve:



Flexible Wedge Gate Valve JIS 10K 20K Rating Flanged End 20 Inches For Fuel Oil



DN 10K
L H D0
40 165 250 160
50 178 409 180
65 190 535 200
80 203 570 200
100 229 590 220
125 254 530.5 280
150 267 630 300
200 292 960 320
250 330 1158 350
300 356 1378 450
350 381 1543 500
400 406 1738 600
450 432 1959 600
500 457 2214 680
  20K
DN L H D0
40 165 250 160
50 216 480 200
65 241 510 250
80 283 580 280
100 305 740 350
150 403 940 400
200 419 1190 450
250 457 1390 500
300 502 1600 500
350 762 1750 600
400 838 1900 600
450 914 2320 650
