Straight Type Four Way JIS Valve Low Flow Pressure Drop Silent Operation For WOG

China Straight Type Four Way JIS Valve Low Flow Pressure Drop Silent Operation For WOG supplier

Large Image :  Straight Type Four Way JIS Valve Low Flow Pressure Drop Silent Operation For WOG

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: Q47F

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 25 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 350 tons per year
Contact Now
Detailed Product Description
End Connection: Flange Body Material: WCB, SCS13, SCS14
Structure: Four Way Ball Port Size: DN15 To DN300
Pressure Rating: JIS 10K Operationg: Manual, Electric, Pneumatic

Straight Type Stainless Steel Flanged End Four Way JIS Ball Valve For WOG

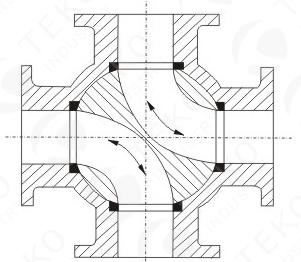

Working Principle



With the structure of flange connection, the valve has such advantages as silent operation, low flow pressure drop, quick direction changing. The TEKO Four way ball valve is designed with four seal ring, which offers reliable bubble tight seal during directional process. The truly virgin PTFE seal ring has a good and stable performance and reduces the maintenance fee for end user.





Use and specifications


The Four Way Ball Valve is applied in the pipes with media such as water, steam, and oil with working temperature less than or equal to 150 ℃, used to change the flow direction and connect or cut off the media in pipes.

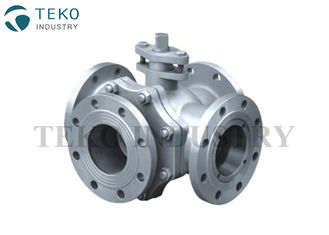

Straight Type Four Way JIS Valve Low Flow Pressure Drop Silent Operation For WOG





Technical Data:



Size rating: 1/2”~12”
Working Pressure: 10K
Design Standard: API 608
Flange Drilling: JIS B2002
Test Standard: IS B 2003




Dimensions:



DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300
L 150 160 180 200 220 240 260 280 320 380 440 550 670 720
D 95 100 125 135 140 155 175 185 210 250 280 330 400 445
D1 70 75 90 100 105 120 140 150 175 210 240 290 355 400
Z-¢d 4*15 4*15 4*19 4*19 4*19 4*19 4*19 8*19 8*19 8*23 8*23 12*23 12*25 16*25
