Single Plate Spring Loaded Stainless Steel JIS Valve , Wafer Check Valve With Lift Type Design

China Single Plate Spring Loaded Stainless Steel JIS Valve , Wafer Check Valve With Lift Type Design supplier

Large Image :  Single Plate Spring Loaded Stainless Steel JIS Valve , Wafer Check Valve With Lift Type Design

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: H71H

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 25 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 350 tons per year
Contact Now
Detailed Product Description
Structure: Piston Seat Material: Hardface
Spring Material: Inconel End Connection: Wafer
Face To Face: JIS B2002 Feature: Short Pattern

Single Plate Spring Loaded Stainless Steel JIS Wafer Check Valve With Lift Type Design



Design Features


Investment casting

Low pressure drop

Highest degree of tightness

Low pressure drop, low friction

Seat: Metal seated.



Single Plate Spring Loaded Stainless Steel JIS Valve , Wafer Check Valve With Lift Type Design

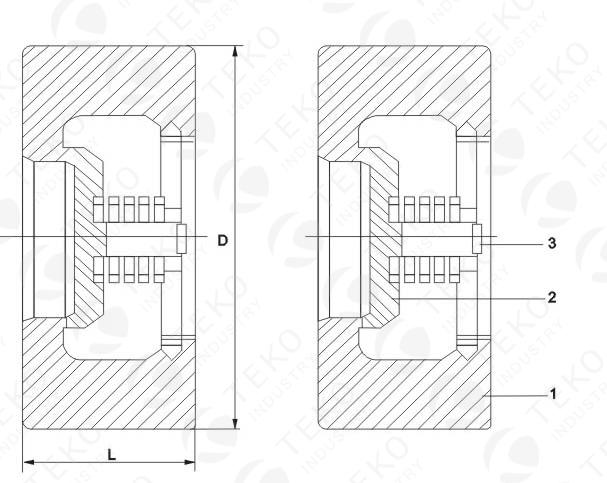

Material List for JIS Lift Check Valve



NO. Part Name Material
1 Body WCB+13Cr SCS13
2 Disc WCB+13Cr SCS13
3 Spring 0Cr18Ni9 0Cr18Ni9





Dimensions:



DN 50 65 80 100 125 150 200 250 300 350 400 450 500
L 40 46 50 61 90 104 140 146 181 184 191 203 219
D 100 118 133 164 197 217 285 338 410 451 514 540 606
