Product Details:
Payment & Shipping Terms:
|
| Features: | Floating Ball | Pressure Rating: | JIS 10K,20K |
|---|---|---|---|
| Mouting Pad: | ISO 5211 | Port Size: | 2"-12" |
| Seat Material: | PTFE | Body Material: | WCB, SCS13 |
| High Light: | jis ball valve,jis swing check valve |
||

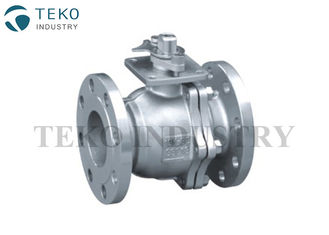

BS5351 Full Bore PTFE Seated Ball Valve With ISO5211 Mounting Pad
Features

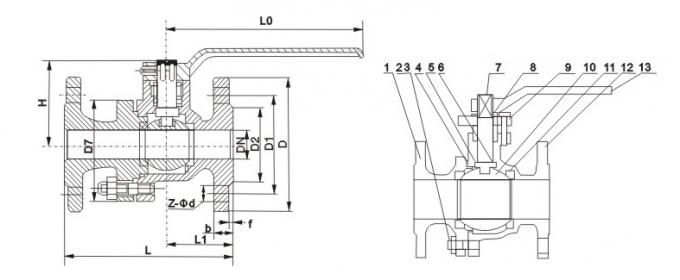

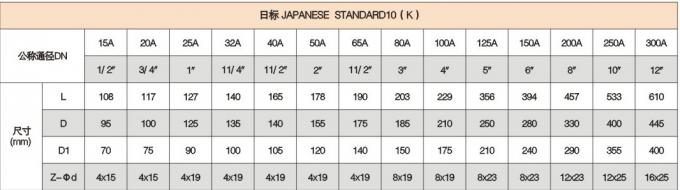

Drawing & Dimensions
| NO. | Part Name | Material | ||
| 1 | Body | A216 WCB | SCS13 | SCS14 |
| 2 | Nuts | A194 2H | A194-8 | A194-8 |
| 3 | Bolts | A193 2B | A193-B8 | A193-B8 |
| 4 | Gasket | PTFE | PTFE | PTFE |
| 5 | Thrust Washer | PTFE | PTFE | PTFE |
| 6 | Packing | PTFE | PTFE | PTFE |
| 7 | Stem | A182-F305 | 304SS | 316SS |
| 8 | Lock piece | A36 | 304SS | 316SS |
| 9 | Gland Bush | A216-WCB | SCS13 | SCS14 |
| 10 | Ball | A182-F304 | 304SS | 316SS |
| 11 | Seat | PTFE | PTFE | PTFE |
| 12 | Cover | A216 WCB | SCS13 | SCS14 |
| 13 | Lever | WCB | WCB | WCB |
