BS 5351 Stainless Steel Flexible JIS Gate Valve 10K 20K With Stable Performance

China BS 5351 Stainless Steel Flexible JIS Gate Valve 10K 20K With Stable Performance supplier

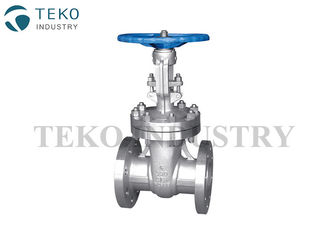

Large Image :  BS 5351 Stainless Steel Flexible JIS Gate Valve 10K 20K With Stable Performance

Product Details:

Place of Origin: Made In China
Brand Name: TEKO
Certification: CE Certificate
Model Number: Z41H

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: By Negotiation
Packaging Details: By polywooden cases
Delivery Time: 15 days after deposite
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 tons per month
Contact Now
Detailed Product Description
Body Material: WCB, SCS13,SCS14 End: Flange
Structure: Flexible Wedge End Connection: JIS B2002
Applications: Water, Gas, Oil Model No.: Z41H-10K

JIS Standard BS5351 Stainless Steel Flexible Wedge Gate Valve 10K 20K





Technical Data of JIS Ball Valve:


1) Size rating: 1/2”~24”
2) Working Pressure:10K, 20K
3) Design Standard:BS 5351
4) Flange Drilling:JIS B1212, B2214
5) Test Standard:JIS B 2003


Material List:



NO. Part Name Material
1 Body A216 WCB SCS13 SCS14
2 Nuts A194 2H A194-8 A194-8
3 Bolts A193 2B A193-B8 A193-B8
4 Gasket PTFE PTFE PTFE
5 Thrust Washer PTFE PTFE PTFE
6 Packing PTFE PTFE PTFE
7 Stem A182-F305 304SS 316SS
8 Lock piece A36 304SS 316SS
9 Gland Bush A216-WCB SCS13 SCS14
10 Ball A182-F304 304SS 316SS
11 Seat PTFE PTFE PTFE
12 Cover A216 WCB SCS13 SCS14
13 Lever WCB WCB WCB
