Product Details:
Payment & Shipping Terms:
|
| Material: | WCB, Stainless Steel | End: | Wafer |
|---|---|---|---|
| Pressure Rating: | 150LB-600Lb | Operation: | Peumatic, 4-20mA Postioner |
| Seat Materail: | Fire Safe Design | Duty: | Control, ON-OFF |
| High Light: | Segment Flanged Ball Valve,API Flanged Ball Valve,Linear V Port Flanged Ball Valve |
||

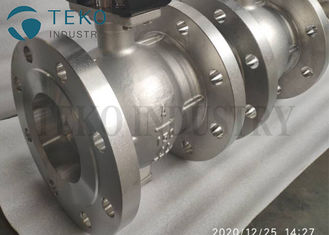

Linear Control V Port API Standard Metal Seat Flange Ball Segment Valve
DESCRIPTION
TEKO V-port valve is primarily intended as a control valve, but it can also be used for shut-off service. Our V-port segment valve is a good general control valve for most pulp and paper process applications.
DESIGN
The ball segment valves high capacity comes from the design of its seat and ball segment. Compared to other valve designs it is often possible to use smaller and more economical valve sizes. What sets TEKO ball segment valves apart from many other manufacturers, is the fact that the entire valve is designed with a free flow in mind. This design philosophy minimizes the risk of clogging.
PRODUCT INFORMATION
| Size Range: | DN 25~250mm NPS 1”-10” (Wafer) DN 25~500mm NPS 1”-20” (Flange) |
| Press. Rate: |
PN 10/16/25/40/63 ANSI 150/300/600 |
| Temp. Range: |
Metal Seat -29...+450℃ Resilient Seat -29...+150℃ |
| Seal Tightness: |
Metal Seat Class IV Resilient Seat Class VI |
| Body Material: | Carbon Steel, Stainless Steel, Special Alloy |
| Ball/Stem Material: | Stainless Steel, Special Alloy |
| Seat Material: |
Stainless Steel+STL, PCTFE,PEEK (Flange) Stainless Steel+STL (Wafer) |
| Face to Face: |
ISA S75.04, IEC/DIN 534-3-2 (Flange) Mill Standard (Wafer) |
| Flange Standard: |
GB/T 9113.1, JB/T 79.1, HG 20592, ASME B 16.34, ISO 7005 (Other drilling on request) |
| Appliactions: |
Pulp & Paper,Water Treatment,Food & Beverage, Fine Chemical,Power Plant,Steel Industry |
