Stainless Steel V Port Pneumatic Segment Ball Valve For Paper & Pulp

China Stainless Steel V Port Pneumatic Segment Ball Valve For Paper & Pulp supplier

Large Image :  Stainless Steel V Port Pneumatic Segment Ball Valve For Paper & Pulp

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: VQ71H,VQ41F

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 15 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 300 tons per year
Contact Now
Detailed Product Description
Driven By: Manual, Penumatic, Electric As Requested Body Material: WCB, CF8,CF8M, CF3,CF3M
Operation: Double Effect Pneumatic Seat Material: Stellite Coating, Nutride Coating
Structure: V Port End Connection: Flange,Wafer

Stainless Steel V Port Design Pneumatic Segment Ball Valve For Paper & Pulp



Overview



The TEKO VQ Series V-port segment ball valve is primarily designed for flow control, and it can also be used for shut-off operation. The notched port design helps to cut off the long fibers and clean the particles suspended in the fluid. It is very suitable for most pulp and paper process application, or similar flow contains fibers and particles.



Application



Pulp and paper/Waste Water Treatment / Food and Beverage / Chemical Plants/ Power Plants /Steel Industry etc.

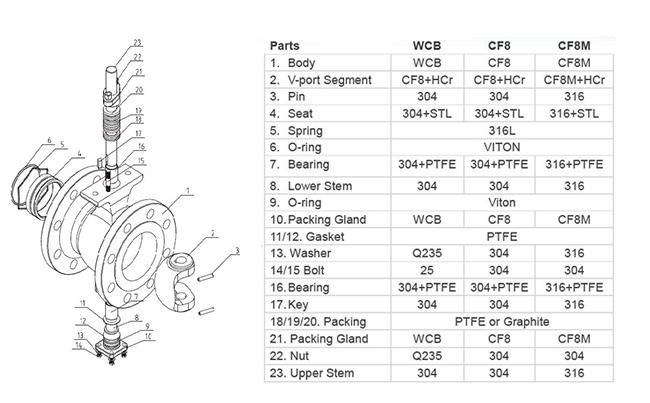

Main Parts



Stainless Steel V Port Pneumatic Segment Ball Valve For Paper & Pulp



Valve Torque



Size 150LB
10 Bar Pressure
Metal Seat
150Lb
10 Bar Pressure
Soft Seat
150Lb
20 Bar Pressure
Metal/SoftSeat
300Lb
30 Bar Pressure
Metal/SoftSeat
600Lb
50 Bar Pressure
Metal/SoftSeat
DN25 20 20 30 85 210
DN32 25 25 36 105 320
DN40 30 30 40 180 380
DN50 35 35 42 190 730
DN65 50 50 62 380 930
DN80 60 80 95 380 1000
DN100 80 120 140 530 1000
DN125 110 180 220 720 2200
DN150 170 300 360 1180 2500
DN200 240 500 590 1750 3800
DN250 430 900 1100 2800 6500
DN300 600 1400 1500 4000 10000
DN350 1200 2000 2500 7800 13100
DN400 1800 3200 4000 9000 18000
DN450 3000 4500 5600 13700 24000
DN500 4600 6500 8200 15500 31000
