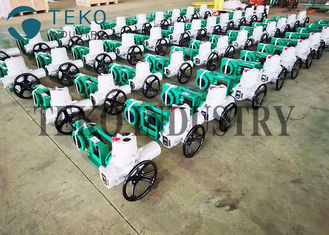

High Pressure Electric KGB Knife Gate Valve Flange End For Slurry

Reliable Operation High Pressure Flange End Electric KGB Knife Gate Valve For Slurry

Design:

The TEKO Knife Gate Valve is bi-directional and best suited for the abrasive applications that are often encountered in the mining and industrial industries. It is one of very few in the market that has been specifically designed for your most demanding applications.

Its replaceable elastomer sleeves offer the latest technology in a reliable sealing solution.

The sleeves fully line the body of the valve ensuring no steel components come in contact with the slurry.

With no packing gland, we also have eliminated the associated actuation issues caused by slurry build-up and dewatering in and around the packing gland. It also allows the gate to eject material out of the bottom during actuation, so you can be sure of full gate closure and a reliable seal. The gate is fully out of the pipeline when open. This minimizes pressure drop across the valve.

Design Advantage:

• Long-lasting, field-replaceable sleeves constructed of a dense-moulded elastomer, with an integral stiffener ring moulded into the sleeve
• Heavy duty wear sleeves provide bi-directional flow and 100% bubble-tight seal with zero down stream leakage
• Fully lined valves ensure all metal components remain clear of process material
• Heavy-duty construction supports easy spare-parts replacement
• Industry-standard allows for easy drop-in replacement
• Universal frame (yoke) design allows for change of actuation, without removing the valve from service
• Upgraded safety features and premium materials are supplied standard on all valves
• Optimised secondary seal offers ease of maintenance and prolonged valve life
• Multiple flange drill patterns available
• Customisable options are available to meet theservice requirements of any application

Specifications
