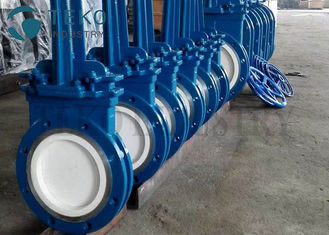

Air Operated Ceramic Knife Gate Valve For Fly Ash Slurry

High Performance Air Operated Ceramic Knife Gate Valve For Fly Ash And Slurry

Ceramic Knife Gate Valves with pneumatic or hand wheel, is specially designed for fly ash, mining slurry, lime slurry and pneumatic conveying system

Technical Specification:

Product Type:

Ceramics Seated and Lined, Knife Gate Valve, designed for bulk material conveying and slurry applications

Hand wheel, Pneumatic, Electric are all available for TEKO ceramic knife gate valve

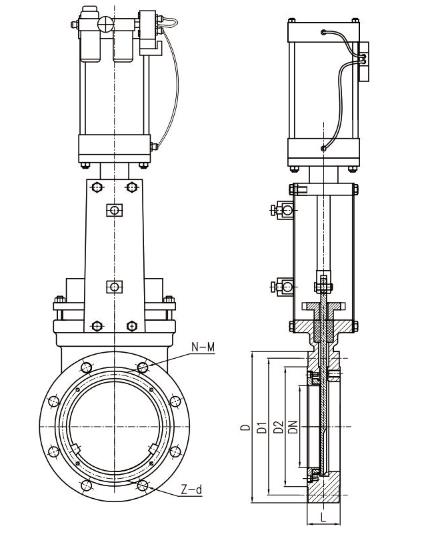

Section Drawing:

Part Name and material

Pressure Ratings:
PN10, PN16, ASME Class 150

Size Range:
DN 50~500 / 2"~20"

Temperature Range:
-29 °C ~ +200 °C (+500 °C)
-20 °F ~ +390 °F (+930 °F).

Valve Tightness:
ISO 5208 rate D
Other tightness rates upon request.

Design Standards:
Valve Body: ASME B16.34
Face-to-Face Dimension: EN558:2008, Series 52
Valve Flanges: EN1092-1, ASME B16.5
Valve Testing and Inspection: API 598

Applications:

• Fly Ash Handling System
• Lime Slurry in Power Plant and Steel Plant
• Mining Slurry for gold, copper, Nickel, etc.
• Pneumatic conveying system for bulk material
• Pulp and paper slag
• Metallurgical water slag
