Product Details:
Payment & Shipping Terms:
|
| Structure: | Through Conduit | Design: | MSS SP-81 |
|---|---|---|---|
| Pressure: | PN10, 150Lb | Connection: | Wafer, Lug |
| Operation: | Manual | End: | DIN, ANSI, As Per Request |
| High Light: | pneumatic knife valve,cast steel valves |
||

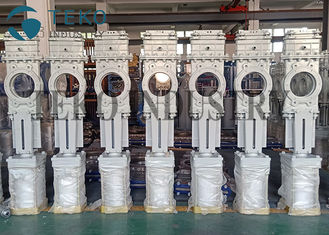

Bonnetless Full Bore Through Conduit Knife Valve For Sludge and Slurry
Description
TEKO Through Conduit knife gate valve is a full bore type of valve. Produced in two half-bodies, is internally machined. It is a bi-directional valve with double seat and double gaskets. It has a wafer design for installation between flanges. The standard version is for DIN PN10 and ANSI 150 flanges; others on request. The gate is in stainless steel, polished on both side and with rounded edges, thus prolonging the useful life of the gaskets and rubber seats. The slide is designed to literally cut the fluids, which normally have a high concentration of solids.
Specification
|
Standard Design
|
DIN/ANSI, others on request |
Pressure |
· DN50-DN150 = 10 bar · DN200 = 8 bar · DN250-DN300 = 6 bar · DN350-DN400 = 5 bar · DN450-DN600 = 3 bar
|
Size |
DN50/2” to DN700/28” |
Materials |
Body: WCB / CF8M / DUPLEX / SUPER DUPLEX Slide: AIS1304/AISI316 other materials on request. Gasket: Synth+PTFE, Graphite, o-ring |
Seat |
Metal/Metal, EPDM, Vitón, Nitrilo, PTFE, Silicone
|
Actuators |
Handwheel, lever, gear box, chain handwheel, pneumatic, hydraulic and electric actuators. |
Sectors |
Pulp and paper/Thermoelectric stations/Mining |
Applications |
Solids/Contaminated fluids/Pulp and paper/Sludge/Slurry, etc. |
Accessories and options |
Deflector cone, reinforced socket, scraper, V-shaped or 5-sided passage, flushing holes, emergency handwheel, limit switches, proximity switches, solenoid valves, filters, emergency systems, junction boxes, extension stems, etc. |
Key Charateristics
WHY US?
Advantages:
Professional: More than 10 years of exporting experiences in valve industry ensure that we always offering the most effective solutions to meet your requirement.
Quality Control:
Strictly operates under the ISO9001 certificate, each valve will be tested for three times before shipping out.
Experienced Sales Team:
Our sales team is experienced, and they are familiar with our products and the working condition and the on-site conditions.
About Price:
we provide very reasonable and competitive price for you
