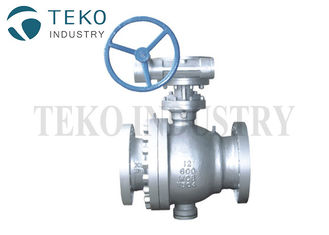

WCB Flanged Ball Valve / Worm Gear Operation ANSI Flange End Side Entry Ball Valve

Large Image : WCB Flanged Ball Valve / Worm Gear Operation ANSI Flange End Side Entry Ball Valve

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	API 6D
Model Number:	Q47TFM

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	15 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Structure:	Side Entry	Body Material:	WCB, Stainless Steel
Bore:	Full Bore	Seat Material:	RPTFE, Develon, SS,STL
Working Temperature:	-25℃~540℃	Media:	Water,Gas,Oil,Steam
High Light:	flanged end ball valve , v port ball valve

Worm Gear Operation ANSI Flange End Side Entry Ball Valve For Oil

General Structures

Design as per BS5351, ANSI B16.34, ISO 17292, API 6 D upon request

ISO 5211 Top flange

FIRE SAFE construction certified as per BS 6755 part 2, API 6FA, API 607 and ISO 10497

Pressure testing according, API 598, ISO 5208, and API 6D upon request

Face to face as per ANSI B16.10, API 6D

Flange End: ANSI 16.5

Body constructions and design advantages

Floating ball

Guided ball

Full Trunnion

Split body 2-3 pieces or 1 piece (side-entry)

Full and reduced bore

Bi-directional

ISO 5211 top flange

Anti-blow out stem

Antistatic stem

Fire safe design optional

Self cavity pressure relief

Material

No.	Parts Name	Material
1	Body	ASTM A105
2	Gasket	PTFE
3	Seat	R-PTFE
4	Ball	SS 304
5	Steel Ball	SS 304
6	Anti-Static Spring	SS 304
7	Stem	ASTM A182 F6a
8	Gasket	PTFE
9	Packing	PTFE
10	Plate	AISI 1045
11	Nut	ASTTM A193 Gr.B7
12	Nut	ASTM A194 Gr.2H
13	Lever	ASTM A216 Gr.WCB
14	Gauge Blcok	AISI 1010Zinc-coated
15	Bushing Gasket	AISI 1045
16	Nut	ASTM A194 Gr.2H
17	Gland	SS 304
18	Gland Bushing	ASTMA276 410
19	Bonnet	ASTM A105
20	Stud	ASTM A194 Gr.2H
21	Nut	ASTTM A193 Gr.B7
