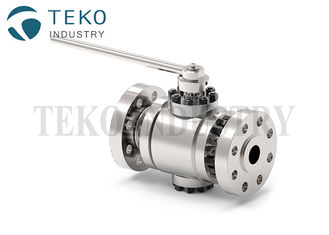

TFM1600 Seat High Pressure Flange End Ball Valve For Oil & Gas API 6D

China TFM1600 Seat High Pressure Flange End Ball Valve For Oil & Gas API 6D supplier

Large Image :  TFM1600 Seat High Pressure Flange End Ball Valve For Oil & Gas API 6D

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: API 6D
Model Number: Q47TFM

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 15 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per year
Contact Now
Detailed Product Description
Structure: Trunnion Ball Body Material: A105,LCB
Bore: Full Bore Seat Material: RPTFE, Develon, SS,STL
Working Temperature: -25℃~540℃ Media: Water,Gas,Oil,Steam
High Light:

flanged end ball valve

,

v port ball valve

TFM1600 Seat High Pressure Flange End Ball Valve For Oil & Gas



1. APPLICATIONS

Chemical, Petrochemical, Oil Refinery, Gas,Power Plant, General Industry etc.



2. FEATURES

* Design - API 608/ API 6D/ BS5351/ ANSI B16.34/ ISO 14313/ MSS SP 72
* Face to Face - ASME B16.10/ ISO5752
* Flanged Ends - ASME B16.5/ ASME B16.47/ ISO7005-1/ API 605/ BS 3293/ DIN
* Butt-Weld Ends - ASME B 16.25
* Fire Safe - API 607/ API 6FA
* Test - API 598/ API 6D
* Seat - PTFE, RTFE, Graphite, Metal to Metal
* Bore - Full & Reduced Bore
* Fabrication - One Piece/Two Piece/Three Piece Body



3. MATERIALS
* Cast Steel
ASTM A216 WCB, WCC
ASTM A217 WC9
ASTM A351 CF8, CF8M, CF3, CF3M, CF3MN,CN7M
ASTM A352 LCB
SUL 904L
* Forged Steel
ASTM A105, A105N
A182 F304, F304L, F316, F316L, F51, F11, F22



4. PRESSURE RATING & SIZE

* API, ANSI, ASME, MSS, BS, DIN, JIS
* 150#~2500# : 2"~32"
PN6~PN250 : DN50~DN800
JIS 10K~40K : 50mm~1400mm



5. OPERATORS & OPTION

* Pneumatic Cylinder/ Motor/ Gear/ Chain Wheel/Anti-Static/ Locking Device/ Limit Switch/ Lever etc.

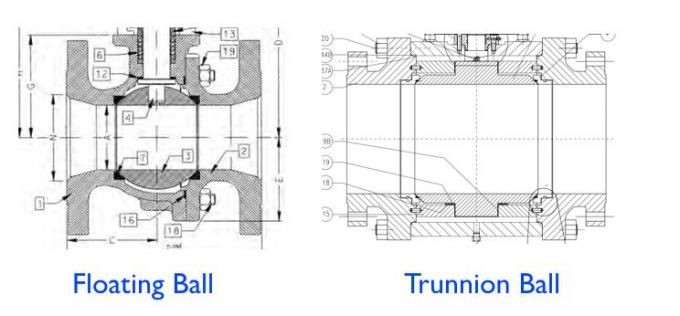

6. TRUNNION BALL STRUCTURE

As described above, there comes a point where owing to the high value of the loading forces on the ball it becomes no longer possible for the seats to support the ball and an alternative design is required.



The trunnion mounted ball design in effect addresses this problem where in effect the shaft, ball, and trunnion act as single assembly that supports the ball instead of the seats and the seats become “floating” in a kind of reversal of the “floating ball” design. Similarly, trunnion mounted ball design is also capable of bi-directional sealing.



An advantage of trunnion ball design over floating ball is the lower operating torque of the ball. This is particularly advantageous when the ball valve is actuated because it reduce the size of the actuator and hence the overall costs of the valve actuation package. Obviously this difference becomes important when the pressure class and valve increases.
