Worm Gear Operated Flanged Ball Valve / Trunnion Mounted Three Piece Ball Valve 150~2500Lb

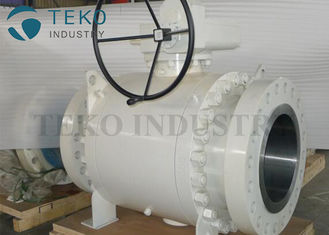

Large Image : Worm Gear Operated Flanged Ball Valve / Trunnion Mounted Three Piece Ball Valve 150~2500Lb

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE/PED, API
Model Number:	Q347F

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	By negotiation
Packaging Details:	By export wooden cases
Delivery Time:	15 working days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Driven By:	Worm Gear, Pneumatic	Structure:	Trunnion Ball
Body Material:	A105,LCB	Bore:	Reduced Bore
Seat Material:	RPTFE, Develon, SS,STL	Working Temperature:	-25℃~540℃
Media:	Water,Gas,Oil,Steam
High Light:	flanged end ball valve , v port ball valve

Worm Gear Operated High Pressure Trunnion Mounted Three Piece Ball Valve 150~2500Lb

Product Description

Product name	Worm Gear Trunnion Mounted Ball Valve
Color	gray/blue/ silver gray etc
available material	A105N, F304, F316, LF2, F304L etc
size range	2″~24″
pressure range	150lb~2500lb
operation mode	lever, worm gear, pneumatic, electric etc.
design std	API 6D, API 608, BS5351
suitable application medium	water, oil, liquid gas, natural gas, steam etc

Features

Two O-ring Seals: Prevent leakage from stem area.
Blow-out Proof Stem: assure stem sealing at all pressures.
Back-up Metal to Metal Sealing: When Primary soft-seat material is destroyed by fire, the metal to metal sealing provides shutoff.
O-ring & Gasket Combination: Prevents leakage from body connection area.
Floating Spring-loaded Seats: Assure sealing performance even at low pressures.

Material List

Item	part	Standard	Stainless Steel	Sour Service	Cryogenic Service
1	Body	ASTM A105N	ASTM A182 F316	ASTM A105N	ASTM A350 LF2
2	Closure	ASTM A105N	ASTM A182 F316	ASTM A105N	ASTM A350 LF2
3	Ball	ASTM A105N/ENP	ASTM A182 F316	ASTM A105N/ENP	ASTM A350/ENP
4.1	Seat Retainer	ASTM A105N/ENP	ASTM A182 F316	ASTM A105N/ENP	ASTM A350/ENP
4.2	Seat Insert	RTFE/NYLON/PEEK	RTFE/NYLON/PEEK	RTFE/NYLON/PEEK	RTFE/NYLON/PEEK
5	Stem	ASTM A182 F6a	ASTM A182 F316	ASTM A182 F6a	ANSI 4140
6	Trunnion	ASTM A105N	ASTM A182 F316	ASTM A105N	ASTM A350 LF2
7	Body Cover	ASTM A105N	ASTM A182 F316	ASTM A105N	ASTM A350 LF2
8	Operator Flange	Carbon Steel	S.S.	Carbon Steel	Carbon Steel
25	Gland Bushing	ASTM A105N	ASTM A182 F316	ASTM A105N	ASTM A350 LF2
100	Stem Sealant Injection	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
103	Vent Bleeder	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
104	Drain Plug	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
121	Lock Pin	Carbon Steel	S.S.	Carbon Steel	ANSI 4140
122	Lock Pin	Carbon Steel	S.S.	Carbon Steel	ANSI 4140
123	Lock Pin	Carbon Steel	S.S.	Carbon Steel	ANSI 4140
124	Lock Pin	Carbon Steel	S.S.	Carbon Steel	ANSI 4140
140	Ball Bearing	316SS+PTFE	316SS+PTFE	316SS+PTFE	316SS+PTFE
141	Top Stem Bearing	316SS+PTFE	316SS+PTFE	316SS+PTFE	316SS+PTFE
142	Lower Stem Bearing	316SS+PTFE	316SS+PTFE	316SS+PTFE	316SS+PTFE
143	Stem Thrust Washer	316SS+PTFE	316SS+PTFE	316SS+PTFE	316SS+PTFE
160	Seat Spring	Inconel X-750	Inconel X-750	Inconel X-750	Inconel X-750
161	Antistatic Spring	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
175	Stem Key	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel
180	Gasket	316SS+Graphie	316SS+Graphie	316SS+Graphie	316SS+Graphie
181	Gasket	316SS+Graphie	316SS+Graphie	316SS+Graphie	316SS+Graphie
182	Gasket	316SS+Graphie	316SS+Graphie	316SS+Graphie	316SS+Graphie
183	Gasket	316SS+Graphie	316SS+Graphie	316SS+Graphie	316SS+Graphie
185	Gasket	316SS+Graphie	316SS+Graphie	316SS+Graphie	316SS+Graphie
200	O-Ring	HNBR/VITON	HNBR/VITON	HNBR/VITON	HNBR/VITON
201	O-Ring	HNBR/VITON	HNBR/VITON	HNBR/VITON	HNBR/VITON
