Detailed Product Description
Driven By: Manual, Penumatic, Electric As Requested Body Material: WCB, CF8,CF8M, CF3,CF3M
Port Size: Reduced Port Seat Material: Stellite Coating, Nutride Coating
Ball: V Ball End Connection: Flange, Wafer

Wafer End Metal Seated V port Segment Ball Valve With ISO Mounting Pad



Our Metal Seated Segment Ball Valves have a special designed v notch ball. The segment V-notch ball provides strong shear force and tight sealing. Depends on different applications.



Specification:

Type Metal Seated Segment Ball Valves
Size DN25-DN500(1”-20”)
Pressure Rating PN10,PN16,PN25,PN40, PN63, CL150, CL300, CL600, JIS10K, JIS 20K
Body Material WCB, CF8, CF8M, CF3M
Trim Material SS304+Chrome Carbide, SS304+Tungsten Carbide, SS304+Stellite
End Connection

Flanged type DN25-DN500 (1”-20”)

Wafer type DN25-DN250 (1”-10”)



Typical Applications:

Metal seated segment ball valve is a quarter-turn one-way valve for on-off or control applications. The flow path of ball is designed with a special V notch. With this special V notch, metal seated segment ball valves have precise flow characteristics. Moreover, since the v notch ball and seat is alloy seated, valve will generate a strong shear force between ball and seat when valve is closing. Therefore, TEKO’s metal seated segment ball valves are very suitable for applications where medium contains fiber or hard solid particles. Typical applications and fields are listed as the following: Pulp & Paper, Petrochemical, Printing & Dying,Pharmacy, Beverage & Food, Slurry.



Design Features:



1. Integral one piece body:

Because of Integral one piece body design, valve is easy to assemble and maintenance, and medium can flow very smooth with little frictional resistance. Wafer and flange connection ends are both available per customer’s requirement.



2. Special designed segment v notch ball:

TEKO metal seated segment ball valves have a special designed v notch ball. The segment V-notch ball provides strong shear force and tight sealing. Depending on different applications, sealing face of segment ball can be coated with chromium carbide, tungsten carbide, and nitriding treatment. These hardfaced coating can protect segment ball from damage caused by corrosion, abrasion and high temperature. The sealing face of segment ball is well ground, which lower operating torque of metal seated segment ball valve and ensure tight sealing performance.



3. Seat with hard face coated:

The sealing face of seat is coated with stellite, chromium carbide or tungsten carbide. It is also well ground, the leakage class can be up to Class V as per FCI 70-2.

Besides metal seat, RPTFE, Devlon and PEEK seats are also available for TEKO segment ball valves.



4. Structure:

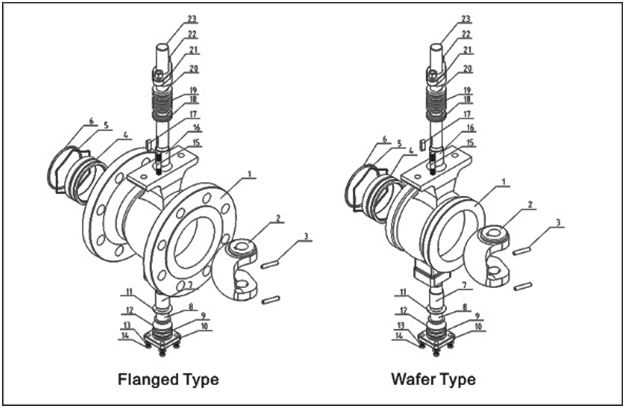

The structure of TEKO metal seated segment ball valve is as the following exploded drawing.



Wafer End Metal Seated V Port Segment Ball Valve With ISO Mounting Pad



No. Part Name Material
1 Body WCB CF8 CF8M
2 Segment Ball CF8+Chromium Carbide CF8+Chromium Carbide CF8M+Chromium Carbide
CF8+Stellite CF8+Stellite CF8M+Stellite
CF8+ENP CF8+ENP CF8M+ENP
CF8+Tungsten Carbide CF8+Tungsten Carbide CF8M+Tungsten Carbide
CF8+Nitriding CF8+Nitriding CF8M+Nitriding
3 Pin SS304 SS304 SS316
4 Seat SS304+Stellite SS304+Stellite SS316+Stellite
5 Spring SS316 SS316 SS316
6 O-Ring Viton Viton Viton
7 Bearing SS304+PTFE SS304+PTFE SS316+PTFE
8 Trunnion A182 F6a 17-4PH 17-4PH
9 O-Ring Viton Viton Viton
10 Bottom Cover WCB CF8 CF8M
11 Washer PTFE PTFE PTFE
12 Adjusting Gasket PTFE PTFE PTFE
13 Gasket SS304 SS304 SS316
14 Screw A193 B7 A193 B8 A193 B8
15 Bolt A193 B7 A193 B8 A193 B8
16 Bearing SS304+PTFE SS304+PTFE SS316+PTFE
17 Key A182 F6a A182 F304 A182 F316
18 Bottom Packing Ring PTFE PTFE PTFE
19 Middle Packing Ring PTFE PTFE PTFE
20 Top Packing Ring PTFE PTFE PTFE
21 Packing Gland WCB CF8 CF8
22 Nut A194 2H A194 8 A194 8
23 Stem A182 F6a 17-4PH 17-4PH
