Driven By: | Worm Gear, Pneumatic | Structure: | Trunnion Ball |
---|---|---|---|
Body Material: | A105,LCB | Bore: | Reduced Bore |
Seat Material: | RPTFE, Develon, SS,STL | Working Temperature: | -25℃~540℃ |
High Light: | flanged end ball valve,v port ball valve |
Flange Type API 6D Fire Proof Stainless Steel Trunnion Isolation Ball Valve

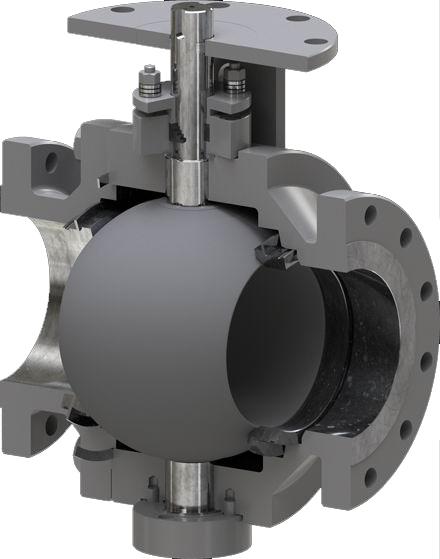

The TEKO trunnion-mounted ball valve is available in either metal-seated and soft-seated from 3 to 60 inch, and two- or three-piece designs, with operating temperature from -50° F to 400° F (-45 to 204° C).
The valve retains many of the time-tested features of the old version, such as an actuator mounting pad, but with a trunnion design. Its’ reduced operating torque results in an overall less expensive valve and actuator package.
Design
3 to 60 inch (80 to 1500 DN)
Bi-directional
API 6D or ASME B16.34
Suitable temperature range: –50 to 400° F (–46 to 204° C)
Suitable for high-cycle services
Options
ASME 150 to 2500 Class (not all size / pressure class combinations available)
Metal seated or soft seated
Fire safe design
Cast or forged body; 2 or 3-piece
Process and customer-specific body and trim materials
Process and customer-specific coatings
Adjustable or non-adjustable stem packing
Spiral-wound body gasket or O-ring body joint seals
Applications
Power generation
Refining
Petrochemical
Mining
