Soft Seal API609 Butterfly Valve Bi - Direcitonal Bubble Tight Double Flange With Gear Actuator

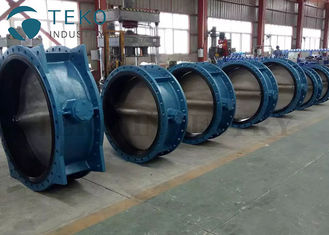

Large Image : Soft Seal API609 Butterfly Valve Bi - Direcitonal Bubble Tight Double Flange With Gear Actuator

Product Details:

Place of Origin:	Made in China
Brand Name:	TEKO
Certification:	CE, API
Model Number:	D41X, D341X

Payment & Shipping Terms:

Minimum Order Quantity:	1 pieces
Price:	By negotiation
Packaging Details:	Pollywooden cases
Delivery Time:	15 days after deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500 tons per year

Contact Now

Detailed Product Description

Manufacture:	API 609	Surface Treatment:	Epoxy Coating
Flange End:	ANSI B16.5, DIN PN10/16	Face To Face:	API 609 Catagories A
Service:	Water, Oil, Air Etc.	Port Size:	DN50~DN2000
Power:	Manual,Pneumatic,Electric,Hydraulic,Pneumatic And Electric Actuator

Bi-directional Bubble Tight Double Flange Soft Seal Butterfly Valve With Gear Actuator

Quick Info:

Flanges: UNI EN 1092-2 PN 10 - 16, ANSI #150
Design: API 609
Face to face length: API609
Installation: horizontal / vertical
APPLICATIONS

• Water supply

• Waste water treatment plants

• Fire fighting systems

• Power plants

• Industry

• Drinking water

• Irrigation

• Heating – conditioning systems

• * other versions available for different applications (please contact us)

Material

Part	Material
Body	Cast iron, ductile iron, carbon steel, AL-bronze, duplex stainless steel
Seat	NBR, EPDM, PTFE, Nature rubber, Viton, Hypalon
Stem	carbon steel, SS410, SS431, SS304, SS316, MONEL K500
Disc	ductile iron, AL-bronze, duplex stainless steel, CF8, CF8M
Short bushing	PTFE
LONG bushing	PTFE
PIN	SS304, SS316, MONEL K500, duplex stainless steel
"O" ring	rubber

Main Features

• Small in size & light in weight and easy maintenance, It can be mounted wherever needed
• Simple, compact structure, quick-acting quarter turn for on/off operation.

• Various kinds of materials, applicable to different media
• Strong wash and brush resistance, and can fit to bad working conditions.
• Long service life, standing the test of ten thousands opening and closing operation

Packing details

1.plastic film wrapped products

2.packing in cartons(according to product size and caliber)
3.loading wooden cases(1m*1m*1m)
4.according to customers special request.

Delivery Details : 1-20 days after order of Solid bicycle tire tubes
