High Pressure DBB DIB Structure 3PC Body Trunnion Ball Valve Flanged End With Gear Operation

China High Pressure DBB DIB Structure 3PC Body Trunnion Ball Valve Flanged End With Gear Operation supplier

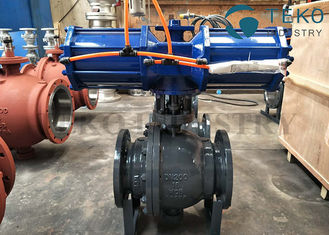

Large Image :  High Pressure DBB DIB Structure 3PC Body Trunnion Ball Valve Flanged End With Gear Operation

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: Q347F

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 30 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per year
Contact Now
Detailed Product Description
Port Size: 2"~36" Pressure Rating: 300LB~2500Lb
Driven By: Manual, Pneumatic, Electric, Hydraulic Structure: Three Pieces
Structuer: DBB, DIB Working Temperature: -25~-180℃

High pressure DBB DIB structure Flanged End 3PC body Trunnion Ball Valve With Gear Operation



Main Features



Fire-Safe Test approved

Double Block & Bleed valves are designed in accordance with API 607



Double body gasket

All Double Block & Bleed valves are equipped with two body gasket. The first body gasket is in soft material and the second in graphite (if not otherwise required), this combination assures the best seal characteristic in whatever corrosive service as well as giving a fire safe design.



Anti-static device

In order to prevent static electricity which may light the fluid, static-conduction spring is set between the stem and the ball.



Anti blow-out proof stem

The stem is designed with integral T-Type shoulder to provide blow-out proof effectively. The design assures that the stem can not be blown out of the valve in the case of the packing being removed while the valve is under pressure.



Solid ball

The solid ball used provides straight through flow and real full-port performance characteristics. Hollow ball or cored cavity ball are not used.



Long life span

Special consideration was devoted to the attainment of enhanced life and operation of our valve throughout design, development, testing and manufacturing stages.

Valve designs combined with the selection of advanced materials are such that long periods of inactivity should not affect the operations of efficiency.



Low torque operation

Seat designs, stem-bearing system and stem seal arrangements ensure consistent minimal torque values.



Flow capacity

Valve design allows for high flow capacity in liquid or gas services regardless of whether the media is clean or dirty. Full port valves allow for pigging and ensure maximum flow capacity.



On site repairable

Simple user friendly design allows for quick and easy part replacement requiring minimal "Down Time".



DBB & DIB-1/ DIB-2



Double Block and Bleed (DBB) API 6D DBB-1 -- The spring loaded seats are always in contact with the ball to provide an effective seal even at low differential pressures. When the pressure is simultaneously applied to both sides of the ball in the fully closed position, the body cavity is isolated from both upstream and downstream sides, allowing Double Block and Bleed operation.





Double Piston Effect (DPE)

API 6D DIB-1 -- Double Piston Effect seated ball valves are available upon request. With DPE configuration, the downstream seat will still keep the valve fully sealed, in case of failure of upstream seat. Body cavity over-pressurization can be released through a relief valve on the body. API 6D

DIB-2 -- A combination of double sealing features on the downstream side and single sealing on the upstream seat is recommended. This configuration maintains the sealing capability of the valve in case of failure of the upstream seat and release of the body cavity overpressurization through the upstream seat.





Main Parts Material

Body, Gland, Adapter, Trunnion Cover, Connector

1.Carbon Steel: A216 WCB, A105

2.Low temp. Carbon Steel: ASTM A352-LCB, ASTM A350-3.LF2 CL2

4.Stainless steel: CF8M, F316

5.Duplex Stainless Steel: F51,

Ball, Stem, Trunnion Seat Retainer

1. Carbon Steel with 1MIL ENP

2. Carbon Steel with 3MIL ENP

3. Low Temp. Carbon Steel with 3MIL ENP

4. ASTM A182-F316, ASTM A351-CF8M

5. ASTM A182-F6A

6. ASTM B564 MONEL

7. ASTM B574 HASTELLOY

8. ASTM A182 F51

9. ASTM A182 F53

10.ASTM A182 F55

Bolting

1. ASTM A193-B7/A194-2H

2. ASTM A320-L7/A194

3. ASTM A193-B7M/A194-2HM

4. ASTM A193-B8/A194-8

5. ASTM A193-B8M/A194-8M

6. ASTM A320-L7M/A194-7M

Trunnion Bearing

1. Carbon Steel with PTFE lined

2. Epoxy with PTFE lined

3. Stainless Steel with PTFE lined

GASKET

1. 316SS Spiral Wound Graphite

2. 316SS Spiral Wound PTFE

3. Monel Spiral Wound PTFE

4. TEFLON

5. BUNA N

6. Solid Graphite

7. VITON A

8. AFLAS (AED)

9. EPDM (AED)

Seat Insert

1. DELRIN

2. PTFE

3. NYLON

4. RPTFE

5. PEEK (HT4)

6. DEVLON

Seals

1. BUNA N

2. VITON B (AED)

3. EPDM (AED)

4. PTFE

5. AFLAS (AED)

6. NITRIL w/ MTBE

7. HNBR

Seat Spring

1. Stainless Steel 17-7PH

2. Inconel X-750

Injection Fittings

1. Carbon Steel

2. Stainless Steel AISI 316

Bleed Valve

1. Carbon Steel

2. Stainless Steel AISI 316

Key, Pin

1. Carbon Steel

2. Stainless Steel
