Manual Abrasion - Resistant Ceramic Lining Knife Gate Valve For Ash And Powder

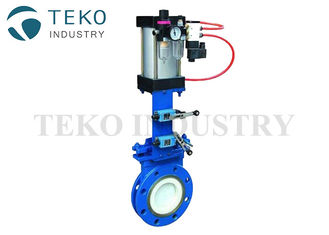

Large Image : Manual Abrasion - Resistant Ceramic Lining Knife Gate Valve For Ash And Powder

Product Details:

Place of Origin:	Made In China
Brand Name:	TEKO
Certification:	CE Certificate
Model Number:	PZ673X

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	By Negotiation
Packaging Details:	By polywooden cases
Delivery Time:	15 days after deposite
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	50 tons per month

Contact Now

Detailed Product Description

Material:	Cast Iron	Liner:	Zirconia Ceramic
Zero Leakage:	Class IV	Drill Standard:	ANSI DIN
End:	Wafer，	Application:	Ash, Powder
High Light:	pneumatic knife valve , cast steel valves

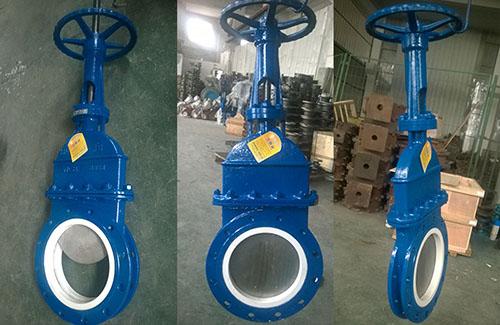

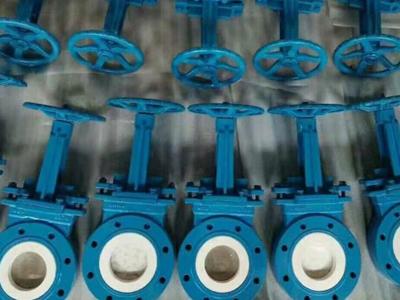

Manual Abrasion-resistant Highly Durable Ceramic Lining Knife Gate Valve For Ash and Powder

Main Applications

1. The valve is used in concentrating mills and coal preparation plants for isolation function. Suitable medium: dry ash, ash slag, coal slurry

2. Operating pressure: 1.0Mpa-1.6Mpa

3. Operating temperature: not higher than 180°C

Features

1. The valve is used in excessive wear pipeline for isolation function. The valve is compact in design and easy to install. The ceramic seal face has good hardness (HRC ≥ 90 ) and good at handling abrasion , solving the problem of hard and brittle ceramics, effectively ensuring the high wear-resistance and corrosion-resistance. The valve plate is made of high chromium alloy with high wear-resistance, impact -resistance, and it can be used for throttling. Besides, the valve is featured with light and easy opening and little friction. The reasonable design eliminates the ash & slag build-up on the valve chamber.

2. The valve can be installed horizontally or vertically, not inversely.

3. Installation and tough-in dimension.

Part Name and material

Number	Name	Material	Number	Name	Material
1	body	WCB	5	packing gland	WCB
2	seat	Zirconia Ceramic	6	stem	2Cr13
3	Gate disc	KM TBCr20Mo	7	yoke	WCB
4	Packing	Flexible graphite	8	Hand wheel	QT400-17
