Product Details:
Payment & Shipping Terms:
|
| Driven By: | Worm Gear, Pneumatic | Structure: | Trunnion Ball |
|---|---|---|---|
| Body Material: | A105,LCB | Bore: | Reduced Bore |
| Seat Material: | RPTFE, Develon, SS,STL | Working Temperature: | -25℃~540℃ |

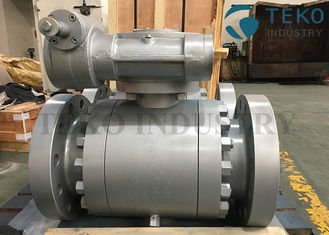

ANSI API6D Forged Steel Flange End Worm Gear Operated Trunnion Ball Valve For Oil & Gas
Specifications
| 1.Material | A105 or as your request |
| 2.Size | 1/2"~48" |
| 3.Pressure | 150LB ~ 2500LB |
| 4.Logo | OEM Available |
| 5.MOQ | 1pcs |
| 6.OEM Accepted | Yes |
| 7.Certification | Yes |
| 8.Production Capacity | 200 tons per month |
| 9.Payment Term | L/C,T/T,D/P,D/A,PAYPAL,WESTERN UNION,MONEY GRAM |
Construction
- Full Port or Reduce Port
- One Piece or Split Body
- Bolted Bonnet with spiral-would gasket
- Fire Safe Design
- Anti-static Design & Blow-out proof stem
- Socket Weld Ends to ASME B16.11
- Butt Weld Ends to ASME B16.25
- Screwed Ends to ANSI/ASME B1.20.1
- Flanged Ends to ASME B16.5
Main Materials
| Part Names | Part Materials | ||||||
| Body | WCB/A105 | LCB/LF2 | WC6/F22 | CF8/F304 | CF8M/F316 | CF3/F304L | CF3M/F316L |
| Bonnet | WCB/A105 | LCB/LF2 | WC6/F22 | CF8/F304 | CF8M/F316 | CF3/F304L | CF3M/F316L |
| Disc/Ball/Wedge | A105 | SS304 | WC6/F22 | SS304 | SS316 | SS304L | SS316L |
| Stem | A105 | F304 | F6a | F304 | F316 | F304L | F316L |
| Seat/Seat Ring | PTFE/RPTFE/NYLON/DEVLON/PEEK or METAL | ||||||
| Packing | Graphite/PTFE | ||||||
| Gasket | SS304+Graphite/SS304+Graphite | ||||||
| Bolts/Nuts | B7/2H | L7/4 | B16/4 | B8/8 | B8M/8M | B8/8 | B8M/8M |
| Suitable Medium | W.O.G etc. | HNO3, CH3OOH etc. | |||||
| Suitable Temperature | -29~425 °C | -46~340 °C | -46~340 °C | -196~427 °C | -196~427 °C | -196~427 °C | -196~427 °C |
