Product Details:
Payment & Shipping Terms:
|
| Driven By: | Worm Gear, Pneumatic | Structure: | Trunnion Ball |
|---|---|---|---|
| Body Material: | WCB, A105, F51 | Bore: | Full Bore |
| Seat Material: | RPTFE, Develon, SS,STL | Working Temperature: | -25℃~540℃ |

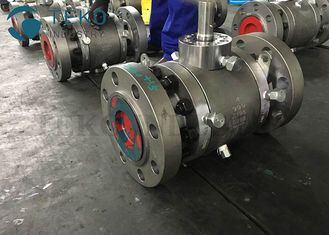

API6D Worm Gear Operated Forged Steel F51 Duplex Trunnion Ball Valve Up to 2500Lb
About Trunnion Ball Valve
A trunnion mounted ball valve has additional mechanical anchoring at the top and bottom on the ball. This special mounting is suitable for larger size and higher pressure valves. Moreover, this design allows for reduction in valve torque as the ball is supported in two places. Every TEKO trunnion mounted ball valve is trunnion mounted. The trunnion mounted stem absorbs the thrust from the line pressure, preventing excess friction between the ball and seats, so even at full rated working pressure, operating torque remains low.
Applicable Standards
Design & Manufacture Std.:API 608,API 6D,ASME B16.34,BS5351
Face to Face Std.: ASME B16.10, API 6D,DIN 3202
End Connection Std.: ASME B16.5, ASME B16.47,DIN2543-2550
Test Standard: ,API 6D,API598,BS 6755,ISO5208,MSS SP-82,MSS SP-61
Fire safe: API607-API6 Fa
Design features
Main Material
