RPTFE Seated Underground BW End Flanged Ball Valve For Gas Output Pipeline

China RPTFE Seated Underground BW End Flanged Ball Valve For Gas Output Pipeline supplier

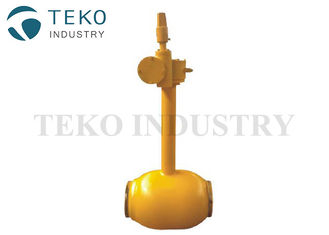

Large Image :  RPTFE Seated Underground BW End Flanged Ball Valve For Gas Output Pipeline

Product Details:

Place of Origin: China
Brand Name: TEKO
Certification: CE Certificate
Model Number: QA61F

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: By Negotiation
Packaging Details: By wooden cases
Delivery Time: 35 days after deposit
Payment Terms: L/C
Supply Ability: 100 tons per month
Contact Now
Detailed Product Description
Material: WCB, Forged Steel End: BW End
Pressure Rating: High Pressure Operation: Manual, Electric
Seat Materail: Metal Seatd, Fire Safe Design Extened Stem: Available

RPTFE Seated Forged Steel Underground BW End Maintenance Free Full Welded Ball Valve For Gas Applications



Construction is as follows:



Name Full Welding ball valve
Size DN25-DN400
Normal pressure PN10~PN40, CLASS150~300
Design standard API 6D, API 608,ASME B16.34, MSS SP-72; BS5351,ISO17292,EN13709
Marked MSS SP-25
Fire safe design API607,API 6FA
End flange ANSI B 16.5,ASME B16.47; EN1092,DIN2543~DIN2547,AS2129
Top flange ISO 5211
Test standard API598,API6D; DIN3230,EN12266,ISO 5208
Suitable temperature -29~150°C
Medium All kinds of industrial gas and heat pipes
Acidic environment NACE MR0175
Operation Hand Operated,Gear Operated, Electrical Actuated, Pheumatic Actuated



Product Description



- Fully Welded Ball Valve with BW ends or Flange Ends

- Used for Gas, oil, Stream, and Heating system

- Body material is Carbon Steel or Stainless steel

-Ball is SS304, SS316

- Seat: RPTFE

- Rating is with PN25, PN40

- Surface: FEB Epoxy Power Coated



Main Part & Materials



Serial No. Parts Material
1 Body WPB, A105,SS304/SS316,F11/F22
2 Shaft Housing Of Valve Rod WPB, A105,SS304/SS316,F11/F22
3 Ball Stainless Steel, ANSI 304
4 Stem Stainless Steel, AISI 304
5 Ball Seal Carbon Enhancement PTFE
6 Packing Ring WPB, A105,SS304/SS316,F11/F22
7 Handle Zinc-plated Steel
8 Packing Flexible Graphite
9 Gasket PTFE


Characteristics

  • Maintenance Free, Easy For installation, Low ownership cost
  • No unreliable casting parts
  • Full port or reduced port
  • Fire safe design, API 6FA
  • Anti-Static Design & Blow-out proof stem
  • Extended stem for option
  • Underground usage

Application



1. City gas: gas output pipeline, the main line and each branch piping and other equipment maintenance.
2. Central heating: large heating equipment output line, main line, branch piping.
3. Heat exchangers : Pipe and each loop opening and closing.
4. Steel plant: a variety of liquid pipelines, optional release gas pipelines, gas and heat piping equipment maintenance, fuel equipment maintenance.
5. A variety of industrial equipment: various heat pipes, all kinds of industrial gas and heat pipes
