| Material: | WCB, Forged Steel | End: | Welded Flanged |
|---|---|---|---|
| Pressure Rating: | High Pressure | Operation: | Manual, Electric |
| Seat Materail: | Metal Seatd, Fire Safe Design | Installation: | Burried Underground |
| High Light: | flanged end ball valve,v port ball valve |
||

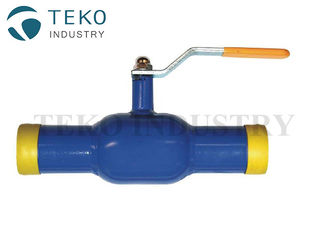

Buried Underground WCB API608 Soft Seated Full Welded Ball Valve For Gas Distribution
Features
1. Applying welding and flanged end
2. The ball in valve is polished and tested before using.
3. Tight and good sealing with Glass Fiber reinforced PTFE(PTFE) seat ring.
4. Preload seat spring protect from leakage of low temperature and decrease the twisting force of operating.
5. We are firmly against the unqualified valve stem.
6. It has floating or fixed structure.
7. The main bearing of stem and the mental band have the capability of self-lubrication, which means it is no need to add additional lubricant.

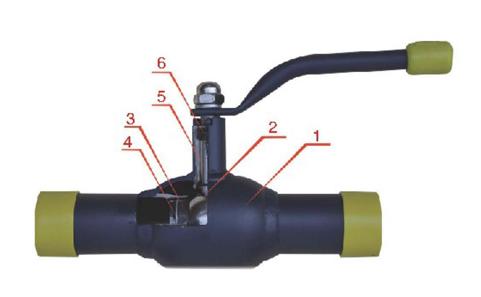

Material List
| No. | Part Name | Material |
| 1 | Body | Carbon Steel |
| 2 | Ball | SS 304 |
| 3 | Ball seals | PTFE + 20% C |
| 4 | Spring Washer | 60Si2MnA |
| 5 | Stem | SS301 |
| 6 | O-ring | FPM |

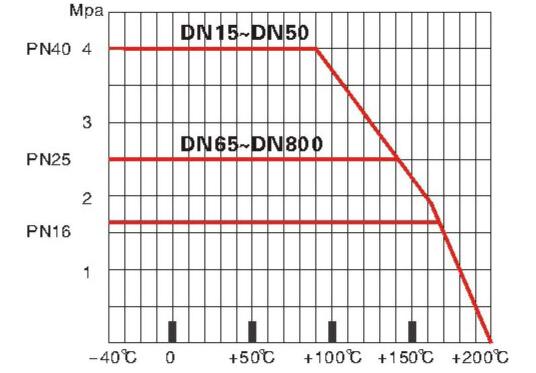

Temperature Pressure Chart
