Electric Actuated Carbon Steel Flanged Ball Valve For Oil & Gas Pipeline ASME Standard

China Electric Actuated Carbon Steel Flanged Ball Valve For Oil & Gas Pipeline ASME Standard supplier

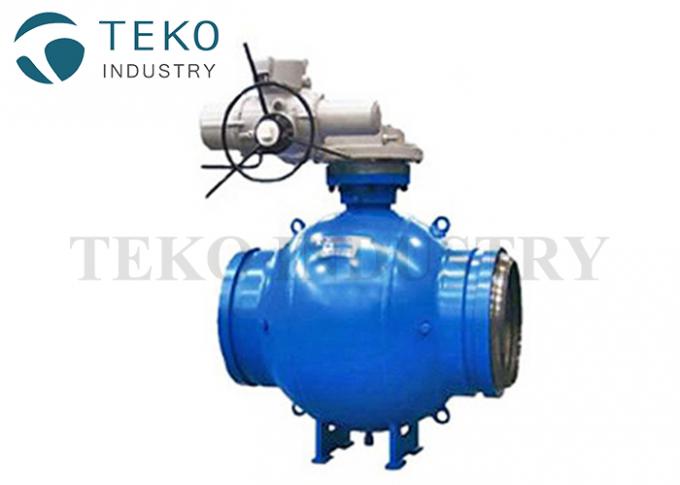

Large Image :  Electric Actuated Carbon Steel Flanged Ball Valve For Oil & Gas Pipeline ASME Standard

Product Details:

Place of Origin: China
Brand Name: TEKO
Certification: CE Certificate
Model Number: QA961F

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: By Negotiation
Packaging Details: By wooden cases
Delivery Time: 35 days after deposit
Payment Terms: L/C
Supply Ability: 100 tons per month
Contact Now
Detailed Product Description
Material: WCB, Forged Steel End: Weld End
Pressure Rating: High Pressure Operation: Manual Or Worm Gear
Seat Materail: Metal Seatd, Fire Safe Design Installation: Underground

Electric Actuated Carbon Steel Material ASME Standard Fully Welded Ball Valve For Oil & Gas Pipeline



Information



Product Name Full Weld Ball Valve
Valve Type Full Weld Ball Valve
Size Range DN15~DN1000, 1/2"~40"
Pressure Range PN10~PN420, CLASS150~2500
Connection End RF, RTJ, BW
Standard API6D, API 598, ASME B16.34, BS5351, MSS SP-25
Operation Way Manual, Pneumatic Actuator, Electric Actuator
Packing Method Standard Export worthy duly wooden cases
Shipment Way By Express, By Air or By Sea, as customer request



Features

- Full Port or Reduce Port
- Weld on Body
- Fire Safe Design
- Anti-static Design & Blow-out proof stem
- With or Without Extended Stem
- Underground Using
- Butt Weld Ends to ASME B16.25
- Flanged Ends to ASME B16.5



Standard Material



NO. Name Material NO. Name Material NO. Name Material
1 Body 20#/Q345R 8 Stem 17-7ph 15 Drain Plug 20Cr13
2 End Socket 20#/Q345R 9 Oil free bearing 304+PTFE 16 Branch Pipe AISI20
3 Ball 304 10 Thrust gasket PTFE+C 17 Upper Gland A105
4 Seat support Ring A105+ENP 11 O-ring VITON 18 Gasket PTFE+C
5 Seat PTFE+C 12 Flat key ANSL 1045 19 Packing 20Cr13
6 O-ring VITON 13 Base A105 20 Clamp Spring 65 Mn
7 Spring 17-7PH 14 Hexagon Screw 8.8 degree 21 Bolt/nut 8.8 degree
