A105 API6D Worm Gear Operated Flanged Ball Valve Full Or Reduced Bore

China A105 API6D Worm Gear Operated Flanged Ball Valve Full Or Reduced Bore supplier

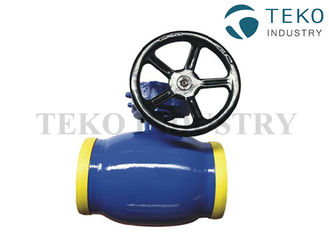

Large Image :  A105 API6D Worm Gear Operated Flanged Ball Valve Full Or Reduced Bore

Product Details:

Place of Origin: China
Brand Name: TEKO
Certification: CE Certificate
Model Number: QA361F

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: By Negotiation
Packaging Details: By wooden cases
Delivery Time: 35 days after deposit
Payment Terms: L/C
Supply Ability: 100 tons per month
Contact Now
Detailed Product Description
Material: WCB End: Weld End
Pressure Rating: 150LB-900Lb Operation: Manual Or Worm Gear
Seat Materail: Metal Seatd, Fire Safe Design Design: Full Weld

Forged Steel A105 API6D Worm Gear Operated Fully Welded Ball Valve For Oil & Gas



The TEKO fully welded ball valve gives it maximum strength at minimum weight as well as maximum resistance both to pipeline pressures and stresses. The compact, spherical design also eliminates body flanges, thus reducing overall size and leak paths.



Our full welded body ball valve are used mainly in gas transmission and distribution pipeline(Mid-Stream), typical for underground and buried installation.



Quick Info of TEKO fully welded ball valve



Design

Fully Welded Body

Soft, Metal-to-metal or primary

Metal Secondary Soft seated

Nominal Size DN12-4000
Nominal Pressure PN10~420/ ANSI class 150~2500Lb
Temperature -50℃ to + 280℃





Design Features



  • Fully welded body
  • Floating ball/ trunnion mounted
  • Spring energized seats
  • Metal or soft seated
  • Double Block and bleed
  • Full or reduced bore
  • Flanged or welded ends
  • Anti-blow out stem
  • Removable stem seals under full line pressure in fully opened or closed position on request.
  • Anti-static device
  • Self lubricated bearings
  • In accordance with API 6D, API 6FA, BS 6755

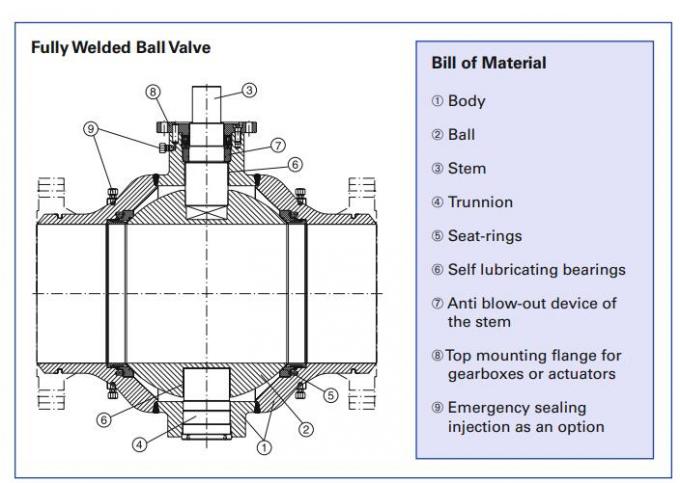

Structure

A105 API6D Worm Gear Operated Flanged Ball Valve Full Or Reduced Bore
