Buried Underground API6D High Pressure Ball Valve BS 5351 ASME B16.5 24″ Fire Safe

China Buried Underground API6D High Pressure Ball Valve BS 5351 ASME B16.5 24″ Fire Safe supplier

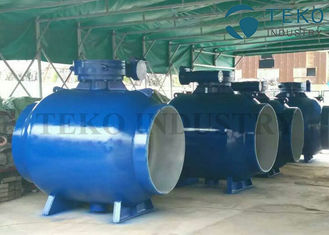

Large Image :  Buried Underground API6D High Pressure Ball Valve BS 5351 ASME B16.5 24″ Fire Safe

Product Details:

Place of Origin: China
Brand Name: TEKO
Certification: CE Certificate
Model Number: QA61F

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: By Negotiation
Packaging Details: By wooden cases
Delivery Time: 35 days after deposit
Payment Terms: L/C
Supply Ability: 100 tons per month
Contact Now
Detailed Product Description
Material: WCB End: Weld End
Pressure Rating: 150LB-900Lb Operation: Manual Or Worm Gear
Seat Materail: PTFE Desing: Full Weld

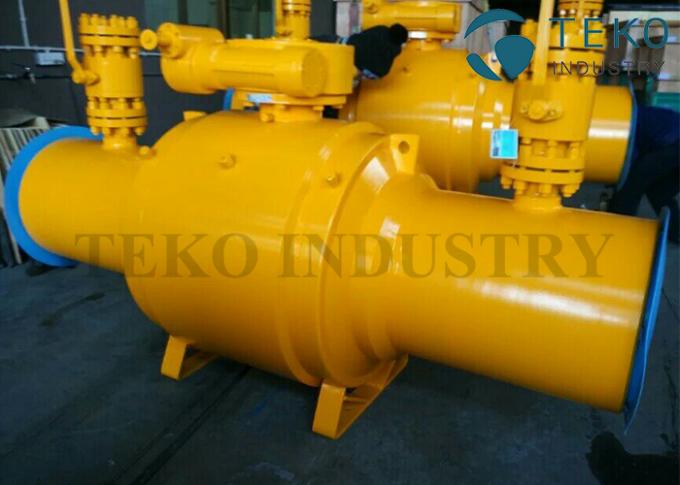

Buried Underground API6D High Pressure Carbon Steel Full Welded Ball Valve For Gas Applications



Description



Advantaged: Fully welded body can be buried underground directly, and has a service life as long as 30 years, so it is widely applied in natural gas long distance and buried pipelines with serious corrosion contain such as gases hydrogen sulfide.



Specification Details
Design Standard API 6D, BS 5351
Pressure/Temperature Chart ASME B16.34, BS 5351
Face to face Dimension ASME B16.10 , API 6D
Fire Safety API 607, API 6FA
Testing Standard API 598
Flange Details ASME B16.5 up to 24″
ASME B16.47 26″ and Above
Butt-Weld End Details ASME B16.25
Size Range 2″ – 48″ (DN50 – DN1200)
ASME Class 150#, 300#, 600#, 900#, 1500#, 2500#
Bore Type Full Bore, Reduced Bore
Emergency grease Injection Device Soft Sealing
Materials

Plate or Pipe steel: A3/20#/SS304/TP304/SS316/TP316,

Forged Steel: A105 / LF2 / LF3 / F316 / F304 /F316L / F51 / F55 / F6a /

Casting Steel: WCB / LCB /LCC / CF8M / CF8 / CF3M / 4A / 6A / Inconel

Ball&Stem F6a / F316 / F304 / F316L / F51 / F55 / Inconel
Seats Soft Sealing or Metal to Metal
Operation Lever, Gearbox, Pneumatic Actuator, Electric Actuator




Material List





No. Part Name Material
1 Body Carbon Steel
2 Ball SS 304
3 Ball seals PTFE + 20% C
4 Spring Washer 60Si2MnA
5 Stem SS301
6 O-ring FPM





Features



Robust

We spend a great deal of time and money and make considerable effort to ensure that the weld seams can withstand extreme conditions. That is the reason why our full-welded ball valves operate reliably even under high pressure. The precision design and manufacturing of all components enables safe operation at all times.



Weatherproof design and production

Our fully-welded ball valves offer almost no surfaces liable to corrosion. Water, dust and sand cannot penetrate the ball valve and can therefore not settle in any cracks. Corrosive influences from the outside are thus actively reduced and the service life of our ball valves is increased significantly.



Economical

In addition to their robust design in respect to internal and external influences, our ball valves provide considerable savings potential for transporting, installing and servicing ball valves. Our ball valves are thus an economical solution, especially in the long term.



Buried Underground API6D High Pressure Ball Valve BS 5351 ASME B16.5 24″ Fire Safe
