Product Details:
Payment & Shipping Terms:
|
| Material: | Cast Steel | Standard No.: | JIS F7312 |
|---|---|---|---|
| Pressure: | JIS 5K | Type: | Angle Type |
| Actuator: | Handwheel | Trim: | Bronze |
JIS 10K Flange End Cast Steel JIS F7312 Angle Type Marine Globe Valve
Applications
Applicable Scope For JIS F7312 Marine Cast Steel Valve
Fuel Oil Piping,Lubricating Oil Piping, Water Piping and steam piping at temperatures 300℃ or less.

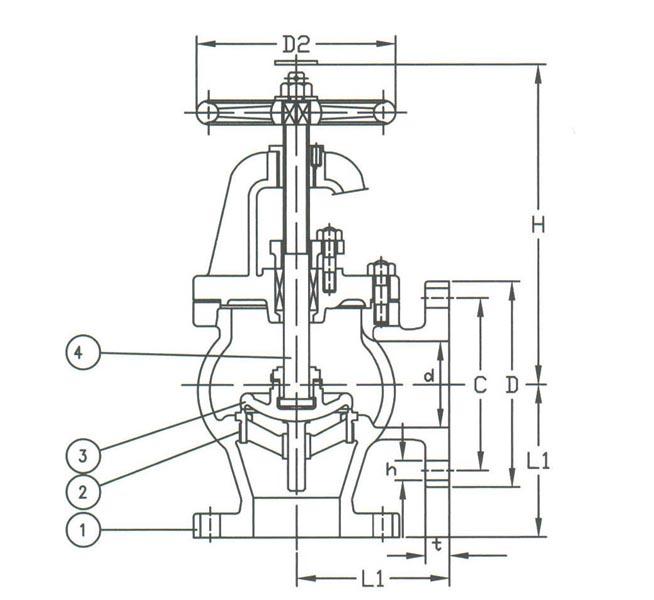

Dimensions
| MODEL NO. | Face to face | Flange diam. | Flange Pitch | Flange Hole | Weight |
| L(mm) | D(mm) | C(mm) | n*d(mm) | W(kgs) | |
| F7312 5K50 | 100 | 130 | 105 | 4×Ф15 | 12.9 |
| F7312 5K65 | 115 | 155 | 130 | 4×Ф15 | 18.2 |
| F7312 5K80 | 130 | 180 | 145 | 4×Ф19 | 23.4 |
| F7312 5K100 | 150 | 200 | 165 | 8×Ф19 | 33.7 |
| F7312 5K125 | 170 | 235 | 200 | 8×Ф19 | 46.2 |
| F7312 5K150 | 190 | 265 | 230 | 8×Ф19 | 63.4 |
| F7312 5K200 | 220 | 320 | 280 | 8×Ф23 | 105 |
| F7312 5K250 | 275 | 385 | 345 | 12×Ф23 | 178 |
| F7312 5K300 | 310 | 430 | 390 | 12×Ф23 | 275 |
Business Scope
*Type: Marine Globe Valve, Marine Stop Check Valve, Marine SDNR Valve, Angle type Marine Vale, Marine Gate Valve, Bronze Marine Valves etc
* Material: Cast Iron, Ductile Iron, Cast Steel, Bronze
* Pressure Rating: JIS 5K, JIS 10K, JIS 16K, JIS 20K, JIS 30K
* Size Range: DN50~DN600
