Cast Iron Material Bolted Bonnet Marine Stop Check Valve JIS F7306 Manual Operated

China Cast Iron Material Bolted Bonnet Marine Stop Check Valve JIS F7306 Manual Operated supplier

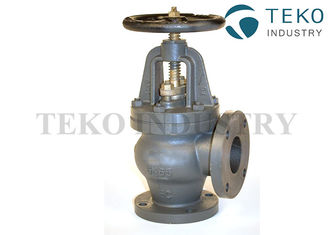

Large Image :  Cast Iron Material Bolted Bonnet Marine Stop Check Valve JIS F7306 Manual Operated

Product Details:

Place of Origin: Made In China
Brand Name: TEKO
Certification: CCS
Model Number: JIS F7306

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: By wooden cases
Delivery Time: 15 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 tons per month
Contact Now
Detailed Product Description
Material: Cast Iron Standard No.: JIS F7302
Pressure: JIS 5K Type: Angle Type
Bonnet: Bolted Bonnet Trim: Bronze

Cast Iron Material Bolted Bonnet JIS F7306 Manual Operated Marine Stop Check Valve





Material Sheet



Parts Material Parts Material
Body FC200 Hexagon Nut SS 400
Bonnet FC200 Split Pin C2600W
Disc BC6 Lock Pin SS400
Valve Seat BC6 Disc Lock Washer C2600P
Disc Nut BC6 Stud SS400
Screwed Bonnet Bush BC6 Stem C3711BD
Seat Ring BC6 Packing JIS F7102
Packing Gland BC6 Handwheel FC200



Dimensions



MODEL NO. Face to face Flange diam. Flange Pitch Flange Hole Weight
  L(mm) D(mm) C(mm) n*d(mm) W(kgs)
F7306 5K65 115 155 130 4×Ф15 18.2
F7306 5K80 130 180 145 4×Ф19 23.4
F7306 5K100 150 200 165 8×Ф19 33.7
F7306 5K125 170 235 200 8×Ф19 46.2
F7306 5K150 190 265 230 8×Ф19 63.4
F7306 5K200 220 320 280 8×Ф23 105
F7306 5K250 275 385 345 12×Ф23 176
F7306 5K300 310 430 390 12×Ф23 243
F7306 5K350 360 480 435 12×Ф25 327
F7306 5K400 395 540 495 16×Ф25 459



Test Pressure



Rating JIS 5K JIS 10K JIS16K
  Up to 300A 350A to 400A Up to 200A Over 250A 50A to 200A
  Globe/Globe Check (SDNR)
Shell Mpa(Kg/cm2) 1.03(10.5) 0.88(9.0) 2.06(21.0) 1.47(15.0) 3.24(33.0)
Seat Mpa(Kg/cm2) 0.76 (7.7) 0.65(6.6) 1.51(1.54) 1.08(11.0) 2.38(24.2)





Cast Iron Material Bolted Bonnet Marine Stop Check Valve JIS F7306 Manual Operated
