Worm Gear Operation Top Entry Flanged Ball Valve With Easy Maintenance

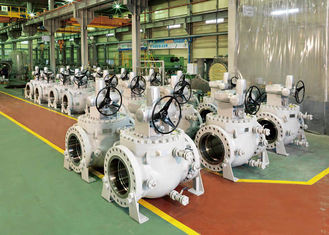

Large Image : Worm Gear Operation Top Entry Flanged Ball Valve With Easy Maintenance

Product Details:

Place of Origin:	China
Brand Name:	TEKO
Certification:	CE Certificate
Model Number:	Q47F

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	By Negotiation
Packaging Details:	By wooden cases
Delivery Time:	35 days after deposit
Payment Terms:	L/C
Supply Ability:	100 tons per month

Contact Now

Detailed Product Description

Material:	Stainless Steel,WCB	End:	Flange
Pressure Rating:	150LB-300Lb	Operation:	Manual Or Worm Gear
Seat Materail:	PTFE, RPTFE OR Develon	Desing:	Top Entry
High Light:	flanged end ball valve , v port ball valve

Worm Gear Operation Top Entry Ball Valve With Easy Maintenance

Features

Easy in-line maintenance
Trunnion mounted ball for ease of operation at high pressure
Fewer potential leak paths
Flange dimension in accordance with ANSI B16.5
Fire test to API 607
Double block and bleed
Anti static design
Anti blow-our design

Pressure Rating

ANSI Class 150/300/600/900/1500/2500

End Connection

Flange, BW, Clamp Ends

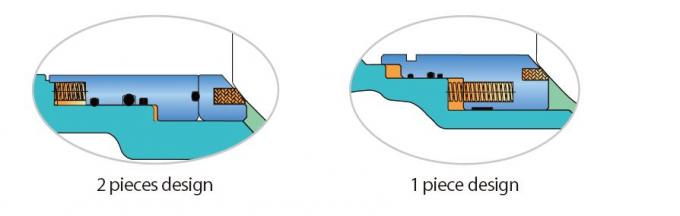

Seat Design

Worm Gear Operation Top Entry Flanged Ball Valve With Easy Maintenance 0
