Butt Weld Eccentric Butterfly Valve ,Worm Gear Driven Three Offset Butterfly Valve For Power Station

China Butt Weld Eccentric Butterfly Valve ,Worm Gear Driven Three Offset Butterfly Valve For Power Station supplier
Butt Weld Eccentric Butterfly Valve ,Worm Gear Driven Three Offset Butterfly Valve For Power Station supplier Butt Weld Eccentric Butterfly Valve ,Worm Gear Driven Three Offset Butterfly Valve For Power Station supplier

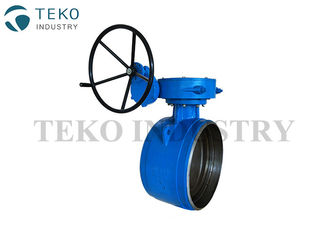

Large Image :  Butt Weld Eccentric Butterfly Valve ,Worm Gear Driven Three Offset Butterfly Valve For Power Station

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE, API
Model Number: D363H

Payment & Shipping Terms:

Minimum Order Quantity: 1 pieces
Price: By negotiation
Packaging Details: Pollywooden cases
Delivery Time: 20 days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per year
Contact Now
Detailed Product Description
Design: API 609 End Conneciton: Butt Weld
Size Rating: 2" To 24" End Standard: ANSi B16.5, ASME B16.47
Body Materail: Carbon Steel, Stainless Steel Driven By: Lever, Gear, Pneumatic, Electric

Butt Weld Worm Gear Driven Three Eccentric Butterfly Valve For Power Station



Basic Parameters

  • Size range: 2”-24”(50mm-600mm)
  • Pressure class: Class 150, Class 300, Class600, PN25, PN40, PN63
  • Connection type: wafer, lug, double flanged, butt-welded
  • Working temperature:-196°C-+165°C(-321°F-+1202°F)
  • Drive type: worm gear, pneumatic, electric, and hydraulic.
  • Applicable medium: applicable for the pressures ranging from vacuum to high pressure, Cryogenic to ultra-high temperature and other kinds of applications



Standards and Specifications

  •
  • Design and manufacture standard: API609,MSS SP-68,BS EN 593
  • Temperature and pressure rate conform to: ASME B16.34
  • Low temperature standard: BS 6364,MS SP-134
  • Drive flange conform to: BS EN ISO 5211
  • Connection flange conform to : ASME B16.5,ASME B16.47,ISO7005,EN1092
  • Face to face conform to : API609,MSS SP-68,ISO5752,EN558
  • Inspection and testing standard conform to: API 598,ISO5208
  • Fireproofing test conform to: BS EN ISO 10497,API607,API F6A
  • Valve mark conform to: MSS-SP-25
  • Dissipation discharge test: API622,API 624 ,ISO/CD 15848,EPA Method2

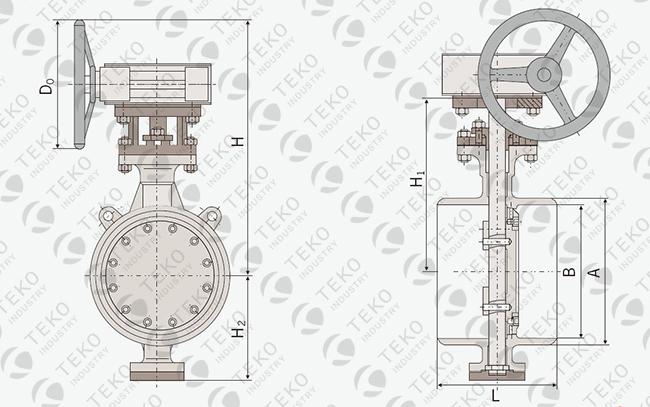

Drawings & Dimensions



Butt Weld Eccentric Butterfly Valve ,Worm Gear Driven Three Offset Butterfly Valve For Power Station





DN L A B H H1 H2 Do
3" 180 91 78 335 210 135 160
4" 190 117 102 360 210 140 160
5" 200 144 128 430 240 170 280
6" 210 168 154 450 260 170 280
8" 230 223 203 495 310 200 250
10" 250 278 255 520 345 235 320
12" 270 329 303 630 420 280 320
14" 290 362 339 660 455 310 320
16" 310 413 388 725 490 345 320
18" 330 464 438 760 515 380 320
20" 350 516 489 830 560 400 400
