Carbon Steel Pneumatic Triple Eccentric Butterfly Valve Wafer Type Size Rating 2" To 60"

China Carbon Steel Pneumatic Triple Eccentric Butterfly Valve Wafer Type Size Rating 2" To 60" supplier

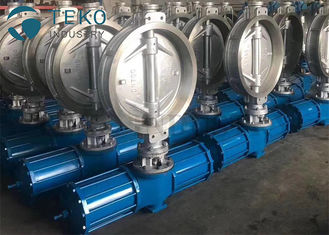

Large Image :  Carbon Steel Pneumatic Triple Eccentric Butterfly Valve Wafer Type Size Rating 2" To 60"

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE, API
Model Number: D673H

Payment & Shipping Terms:

Minimum Order Quantity: 1 pieces
Price: By negotiation
Packaging Details: Pollywooden cases
Delivery Time: 40 days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per year
Contact Now
Detailed Product Description
Operation: Double Acting Pneuamtic, Spring Return Pneumatic Working Pressure: Class150/300/600/900Lb
Body Configuration: Wafer, Lug, Double Flange Size Rating: 2" To 60"
Seat Material: Laminated Disc Seal Body Seat: CoCr Alloy Deposited
Media: Water,Oil,Gas,Acid

Carbon Steel High Pressure Pneumatic Triple Excentric Butterfly Valve Wafer Type



Features:
1) Design and manufacture standards:
*Wafer and lug: API 609, EN593, DIN 3354
* Flange and weld: BS5155 / EN598


2) Inspection and test standards: API 598, DIN3230, BS5146


3) F-to-F:
*Wafer and lug: API609, DIN 3202 K2
*Flange: ISO 5752


4) End flange dimension: ASME B16.5 (for NPS not more than 24"), ASME B16.47 series B, API 605,
ASME B16.47 series A (for NPS> 24"), or BS EN 1092


5) Top flange: ISO5211


6) Connecting: wafer, lug, flange or weld


7) Size: 2" - 120", DN50 - DN3000


8) Pressure: Class 125 - Class 600, PN6 - PN100


9) Temperature: -20OC - 400OC



Material:



Parts Material
Body WCB / 316/ CF8 / CF8M
Disc WCB / 316/ CF8 / CF8M
Stem 13%Cr / 316 / 304 / SS17-4PH
Seal Laminated, metal seal, U-type metal seal



Operation



lever, worm gear, pneumatic, electric, hydraulic or pneumatic-hydraulic

actuator available



Advantages:

  1. Long life span
  2. Triple Eccentric design, suitable for high pressure and high temperature working conditions.
  3. Radiator can be added for high temperature
  4. Widely used in foodstuff, beverage, pharmaceutics, boiler, oil refining, chemical
    machinery industries, chemical and petrochemical processing, power generating
    plants, pulp and paper manufacturing processing, desalination, steelmaking, coal
    and mining industries
