Metal Seated Butterfly Valve High Performance Double Flange End Triple Eccentric Worm Gear

China Metal Seated Butterfly Valve High Performance Double Flange End Triple Eccentric Worm Gear supplier
Metal Seated Butterfly Valve High Performance Double Flange End Triple Eccentric Worm Gear supplier Metal Seated Butterfly Valve High Performance Double Flange End Triple Eccentric Worm Gear supplier

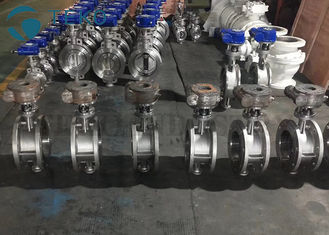

Large Image :  Metal Seated Butterfly Valve High Performance Double Flange End Triple Eccentric Worm Gear

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE, API
Model Number: D373H

Payment & Shipping Terms:

Minimum Order Quantity: 1 pieces
Price: By negotiation
Packaging Details: Pollywooden cases
Delivery Time: 20 days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 tons per year
Contact Now
Detailed Product Description
Features: Bi-dreictional Bubble Tight Operation: Worm Gear
Body Configuration: Wafer, Lug, Double Flange Size Rating: 2" To 60"
Fire Safe: Upon Request Pressure: High Pressure
Oem: Avaliable Warranty: 12 Months

High Performance Double Flange End Triple Eccentric Worm Gear Metal Seated Butterfly Valve



Introduction



With years of research and development, TEKO triple eccentric butterfly valve has he benefits of less weight, less cost, zero friction and zero leakage. The triple eccentric design makes no friction between the disc and body seat. The low torque shall certainly reduce the ownership cost.



Product Description



Product name triple eccentric wafer butterfly valve
Model Number D373H
Size Range DN50~1600 2"~64"
Pressure Rating 1.0MPa,1.6MPa,2.5MPa,4.0MPa,150LB,300LB
Temperature Rating -30~+350℃(Temperature range subject to the material of sealing and the property of medium)
Flange Drilling DIN ANSI BS,etc.
Testing Shell Test and Seal Test
Main Material WCB,CF8,CF8M,CF3,CF3M,etc.(Other materials are available under request.





Butterfly Valve's Applicable Standards:



Design & Manufacture according to : API 6D

Face to Face according to : ASME B16.10

Flange Dimensions according to : ASME B16.5

Pressure & Temperature according to : ASME B16.34

Test & Inspection according to : API 6D / API 598

Visual Inspection according to : MSS SP-55

Marking according to : MSS SP-25



Application:


1.Nuclear power Plants Petrochemical plants
2.Petroleum refinery Fossil power plants
3.Fire safe line Exhaust gas line & Steam line
4.Cryogenic services
