|Design:||API 609||End Conneciton:||Wafer End|
|Size Rating:||2" To 48"||End Standard:||ANSi B16.5, ASME B16.47|
|Feature:||Bi-direcitonal Seal||Driven By:||Lever, Gear, Pneumatic, Electric|
triple offset butterfly valve,
double offset butterfly valve

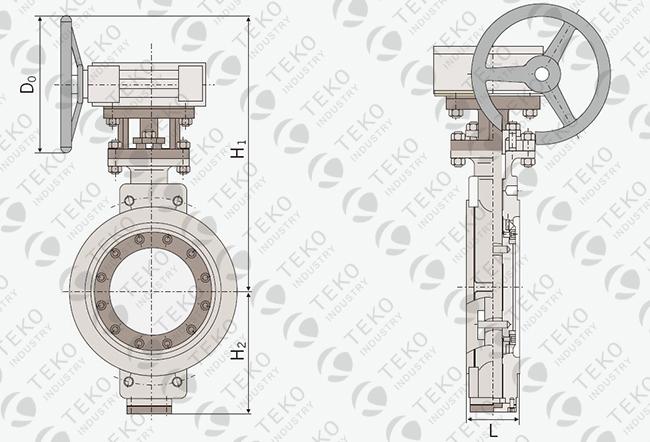

Bi-directional Seal Metal Seated Triple Offset Butterfly Valve With Wafer Lug End
With years of research and development, TEKO triple eccentric butterfly valve has he benefits of less weight, less cost, zero friction and zero leakage. The triple eccentric design makes no friction between the disc and body seat. The low torque shall certainly reduce the ownership cost.
Metal seated, triple offset design provides bi-directional zero leakage shutoff
Self-centering disc prevents binding due to thermal shaft expansion.
Clamped seal ring with flat gasket provides even compression and consistent sealing performance.
Supported Shaft prevents shaft deflection and seal leakage
Inherently fire-safe desing
Double offset butterfly valve VS Triple offset butterfly valve
Double offset butterfly valve is known as high performance butterfly valve. There are two stem offset from the center. This creates a cam action during the application’s process. The double offset butterfly valve is up to ANSI Class600 rating in carbon steel, stainless steel, hastelloy and other body material, with variation of PTFE seat and also fire safe design with metal back up seats.
For the triple offset butterfly there are three offsets. Two are placed in a similar position to the double offset butterfly valve, while the third offset is the geometry of the seating surface, creating a type of cone shape of the disc and seat. The design allows the disc to seal against the seat with no friction. It has advantages of lower cost, lower torque, option, than alternative style metal seated valves.
The triple offsets are generally used in applications similar to gate valves, where a metal seat is required and tight shutoff and/or quarter turn actuation is desired. The triple offset valve is used in similar industries as the double offset butterfly valve, but in more demanding applications.
