Product Details:
Payment & Shipping Terms:
|
Body Material: | ASTM A536 Ductil Iron | Opeartion: | Double Acting Pneumatic Actuator |
---|---|---|---|
Flange Standard: | ASME B16.5 150Lb, DIN PN10 | Accessory: | FRL |
Seat Materail: | EPDM,NBR, PTFE, Etc | Service: | Water, Oil, Air Etc. |
High Light: | centerline butterfly valves,fire protection butterfly valves |

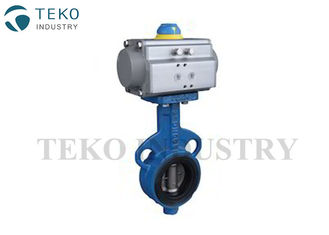

Pneumatic Actuated Ductile Iron Body Resilient Seat API609 Butterfly Valve For Water Works
Product Specifications
Valve type | Centric Disc Butterfly valve with a single piece rubber lined body |
Body type | Short wafer (sandwiched between flanges) |
Seat type | Integrally moulded with the body |
End Connection | Wafer Sandwiched(Lug type on request) |
Pressure rating | PN 10 / PN 16 (On Request) |
Oper. Temp. range | -25 deg C to 130 deg C (depending on MOC) |
Seat Leakage | Tight shut off |
Operation | Hand lever for sizes from 40mm to 350 mm Worm gear boxes for 40 mm to 1000 mm |
Material:
Double Acting Pneumatic Actuated Butterfly Valve
WHY US?
Professional: More than 10 years of exporting experiences in valve industry ensure that we always offering the most effective solutions to meet your requirement.
Quality Control: Strictly operates under the ISO9001 certificate, each valve will be tested for three times before shipping out.
Experienced Sales Team: Our sales team is experienced, and they are familiar with our products and the working condition and the on-site conditions.
About Price: we provide very reasonable and competitive price for you
Contact Person: sales
Tel: +8613660157288
