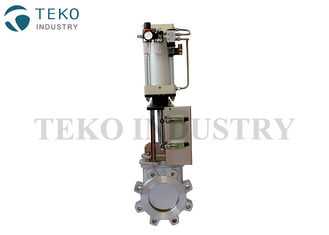

Pneumatic Actuated 4 Inch Knife Valve Removable Seat Zero Leakage For Gasifier

China Pneumatic Actuated 4 Inch Knife Valve Removable Seat Zero Leakage For Gasifier supplier

Large Image :  Pneumatic Actuated 4 Inch Knife Valve Removable Seat Zero Leakage For Gasifier

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: PZ73X

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 25 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 350 tons per year
Contact Now
Detailed Product Description
Features: Movable Seal Gate Material: SS 304/SS316
Seal Type: Uni-directional Port Size: 2"-48"
Seat Material: Same As Body Material Body Material: Cast Steel

Pneumatic Actuated Re Movable Seat Zero Leakage Knife Valve For Gasifier Applications





TEKO Removable Knife Gate Valve, Uni-directional Seal, Interchangeable Seat Ring, Flange Drilled to ANSI B16.5/DIN PN10, Self Sealing Seat, Metal-to-metal Seal



Features:



Pneumatic Actuated 4 Inch Knife Valve Removable Seat Zero Leakage For Gasifier

  • Compact Integrated body push the seal ring tightly to the disc to achieve a good sealing.
  • Seat ring can be replaced on site, reduce the down time and save the cost.
  • Widely applied in pulp and paper, mining, sugar plant, electricity etc.





Technical Data



Nominal Diameter 2"-48"
Pressure rating ANSI 150Lb/DIN PN10
Pressure Test DN50-DN200: 16 bar
DN250-DN400: 10 bar
DN450-DN600: 6 bar
Suitable Temperature -60℃ to +1100℃
Leakage Rate D Class for metal seated
A class for soft seated
