Bi - Direction Shutoff Wafer End Valve Ductile Iron Zero Leakage For Ash And Coal

China Bi - Direction Shutoff Wafer End Valve Ductile Iron Zero Leakage For Ash And Coal supplier

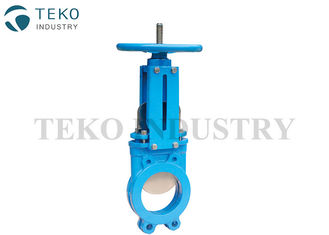

Large Image :  Bi - Direction Shutoff Wafer End Valve Ductile Iron Zero Leakage For Ash And Coal

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: PZ73X

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 25 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 350 tons per year
Contact Now
Detailed Product Description
Features: Heavey Duty End Connection: Wafer, Lug
Seal Tyouble Seatedpe: Bi-directional Port Size: 2"-24"
Seat Material: EPDM,NBR Body Material: Ductile Iron, WCB, Stainless Steel

Bi-direction Shutoff Zero Leakage Wafer End Knife Gate Valve For Ash And Coal



TEKO new designed knife gate valve is a high performance shut-off valve with superior flow characteristics, offering bi-directional zero leakage shut-off up to 150 psi/10 bar. It is suitable for media such as pulp stock, chemicals, sludge, bio mass, slurry and water. The fully lugged body design is suitable for dead-end services.



Our Knife Gate Valve Supplies with stainless steel wetted parts including the fully lugged valve body, highly polished gate and gland. A smooth cycling and a tight shut-off independent of valve position is achieved by the high strength top works that provide an essential alignment for the gate.





Bi-directional zero leakage shut-off



Bi - Direction Shutoff Wafer End Valve Ductile Iron Zero Leakage For Ash And Coal

Gate guides (3) support the gate through the entire range of travel. In bottom of the guides, the relief areas (4) promote a self-cleaning, flushing action as the gate moves into the final stage of closure. The perimeter resilient seat provides tight shut-off in both directions. The seat is also reinforced with a stainless steel core (5) to enhance durability.



Drawings & Dimensions



Bi - Direction Shutoff Wafer End Valve Ductile Iron Zero Leakage For Ash And Coal



DN L O D S C f M-(UNC) B H Do
in mm
2" 50 48 152 120.5 91.9 16 1.6 4-M5/8"-11 136 375 180
2-1/2" 65 48 178 139.5 104.8 16 1.6 4-M5/8"-11 151 420 180
3" 80 51 190 152.5 127.0 17 1.6 4-M5/8"-11 170 450 200
4" 100 51 229 190.5 157.2 17 1.6 8-M5/8"-11 190 512 200
5" 125 57 254 216 185.4 17 1.6 8-M3/4"-10 212 570 220
6" 150 57 280 241.5 215.9 21 1.6 8-M3/4"-10 230 665 250
8" 200 70 343 298.5 269.7 21 1.6 8-M3/4"-10 286 825 300
10" 250 70 406 362 323.8 24 1.6 12-M7/8"-9 338 1000 350
12" 300 76 483 432 381.0 24 1.6 12-M7/8"-9 388 1155 350
14" 350 76 533 476 412.7 33 1.6 12-M1"-8 460 1310 400
16" 400 89 597 540 469.9 35 1.6 16-M1"-8 520 1475 500
