Bonnetless Non - Clogging Wafer Connection Valve Full Bore Through Conduit For Paper Mill

China Bonnetless Non - Clogging Wafer Connection Valve Full Bore Through Conduit For Paper Mill supplier
Bonnetless Non - Clogging Wafer Connection Valve Full Bore Through Conduit For Paper Mill supplier Bonnetless Non - Clogging Wafer Connection Valve Full Bore Through Conduit For Paper Mill supplier

Large Image :  Bonnetless Non - Clogging Wafer Connection Valve Full Bore Through Conduit For Paper Mill

Product Details:

Place of Origin: Made in China
Brand Name: TEKO
Certification: CE/PED, API
Model Number: GP73X

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: By negotiation
Packaging Details: By export wooden cases
Delivery Time: 20 working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 350 tons per year
Contact Now
Detailed Product Description
Structure: Through Conduit Design: MSS SP-81
Pressure: PN10, 150Lb Connection: Wafer, Lug
Operation: Manual End: DIN, ANSI, As Per Request

Bonnetless Non-Clogging Full Bore Through Conduit Knife Valve For Paper Mill



Applications



General Us: The Through Conduit Knife Gate Valve is particulaly adapted in paper mill, in the exti of pulp, for the recorvery of the old paper where the product is mixed with numerous impurities.(ex.Staples)




Key Charateristics



  • Size: From DN50 to DN700
  • Bi-directional seal gate
  • Longer body in tow parts assembled by bolts
  • The gate is longer and its lower part rests out of the body, which requires a second system of gland packing.
  • With hole on the gate, total equal to the pasage, ensures a complete pasage of the fluid without retention zone.
  • No accumulation of product in the bottom of gate evacuation gorge.

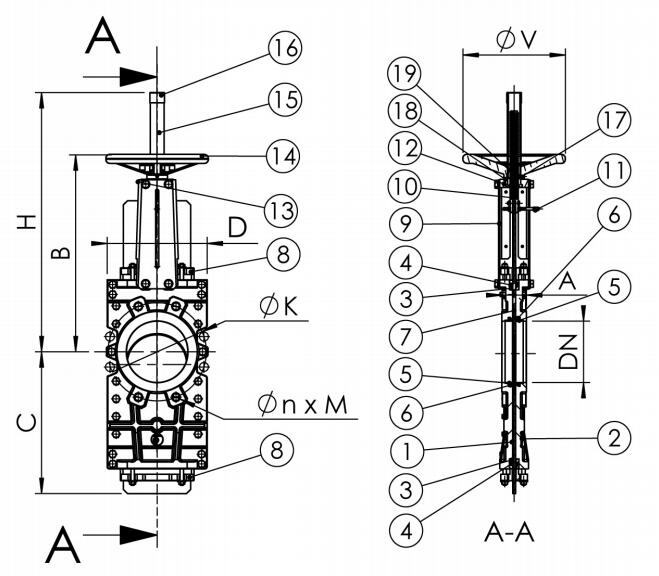

Material List

Bonnetless Non - Clogging Wafer Connection Valve Full Bore Through Conduit For Paper Mill



NO. Part Name Material
1 Body Ductile Iron
2 Second Body Ductile Iron
3 Packing Graphite
4 O-ring Nitril
5 Support Ring SS 316
6 Gasket Nitril
7 Knife Gate AISI 304
8 Packing Galnd Aluminium
9 Support Plate Steel+Epoxy
10 Stem Stainless Steel
11 Position Indicator SS 304
12 Nut Support Zinc Steel
13 Greaser Stainless Steel
14 Handwheel G25
15 Protection tube Steel
16 Cap Plastick
17 Stop Screw Stainless Steel
18 Friction Washer Bronze
19 Nut Bronze
  • Other material are available upon request.



WHY US?



Advantages:

Professional: More than 10 years of exporting experiences in valve industry ensure that we always offering the most effective solutions to meet your requirement.

Quality Control:

Strictly operates under the ISO9001 certificate, each valve will be tested for three times before shipping out.

Experienced Sales Team:

Our sales team is experienced, and they are familiar with our products and the working condition and the on-site conditions.

About Price:

we provide very reasonable and competitive price for you
