Product Details:
Payment & Shipping Terms:
|
Features: | Bi-directional Seal | Operation: | Handwheee, Bevel Gear, Electric, Pneumatic |
---|---|---|---|
Feature: | Renewable Seat | Design: | MSS SP-81 |
Surface: | Epoxy Coating | Connection: | Wafer, Lug |
High Light: | 4 inch knife valve,cast steel valves |
Full Bore U Shape Seal Ring Bi-directional Seal Knife Gate Valve
Full port design
The 100% are round port on the TEKO Knife gate valve allows high flow capacity and minimum pressure drop. The seat inside diameter is equal to ID of standard pipe.
Benefits

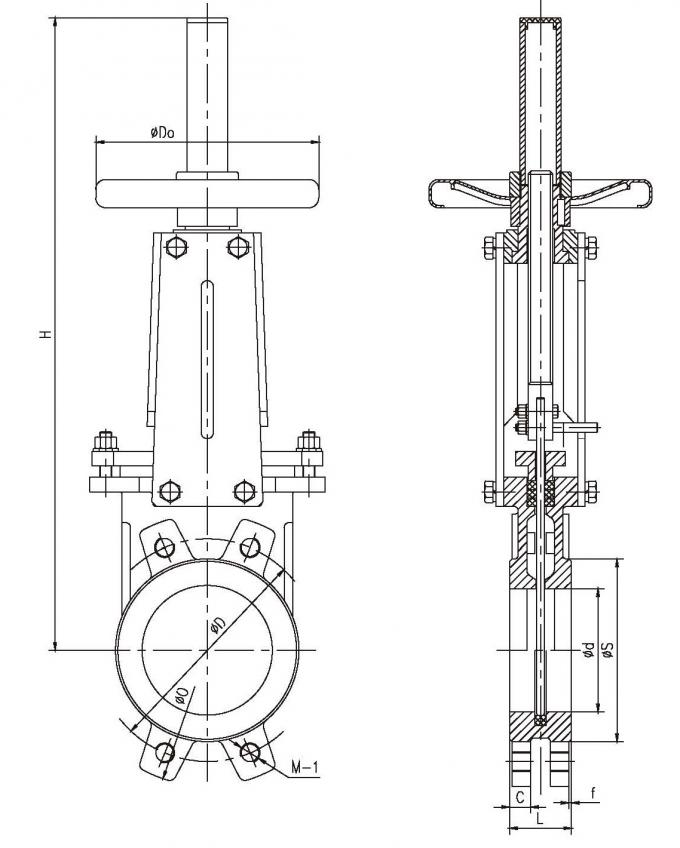

DN | L | O | D | S | C | f | M-1 | B | H | Do | Weight (KGS) |
50 | 40 | 165 | 125 | 95 | 16 | 2 | 4-M16 | 136 | 375 | 180 | 7 |
65 | 40 | 185 | 145 | 110 | 16 | 2 | 4-M16 | 151 | 420 | 180 | 8 |
80 | 50 | 200 | 160 | 127 | 17 | 2 | 8-M16 | 170 | 450 | 200 | 11 |
100 | 50 | 220 | 180 | 148 | 17 | 2 | 8-M16 | 190 | 512 | 200 | 12 |
125 | 50 | 250 | 210 | 174 | 17 | 2 | 8-M16 | 212 | 570 | 220 | 15 |
150 | 60 | 285 | 240 | 199 | 21 | 2 | 8-M20 | 230 | 665 | 250 | 21 |
200 | 60 | 340 | 295 | 250 | 21 | 2 | 8-M20 | 286 | 825 | 300 | 29 |
250 | 70 | 395 | 350 | 308 | 24 | 2 | 12-M20 | 338 | 1000 | 350 | 46 |
300 | 70 | 445 | 400 | 360 | 24 | 2 | 12-M20 | 388 | 1155 | 350 | 66 |
350 | 96 | 505 | 460 | 416 | 33 | 2 | 16-M20 | 460 | 1310 | 400 | 92 |
400 | 100 | 565 | 515 | 466 | 35 | 2 | 16-M24 | 520 | 1475 | 500 | 125 |
